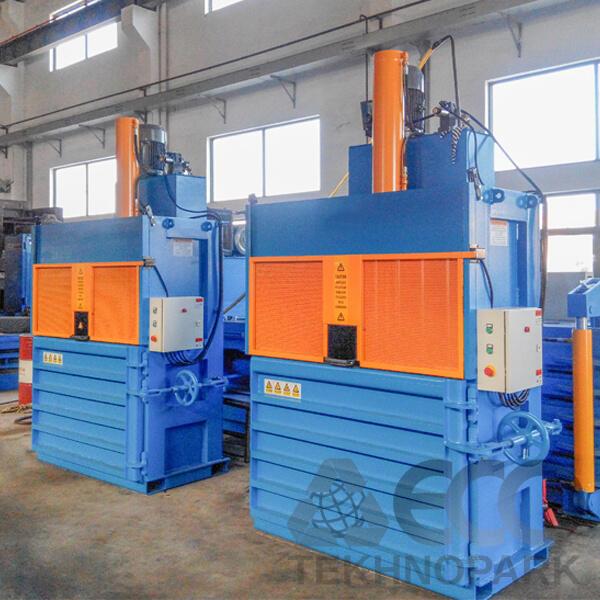

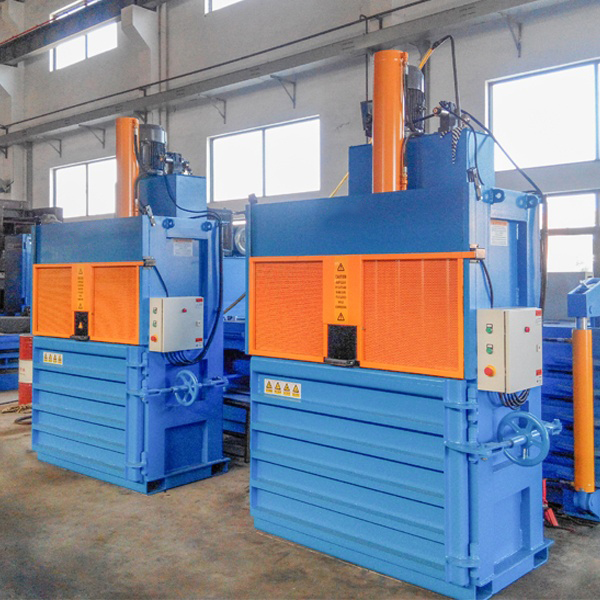

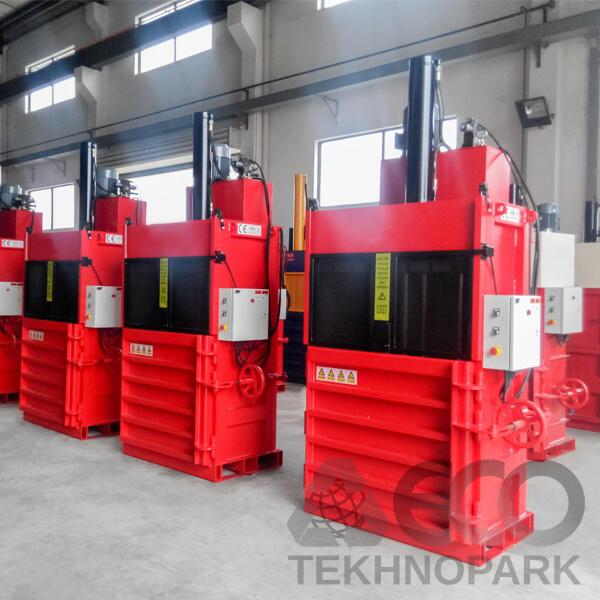

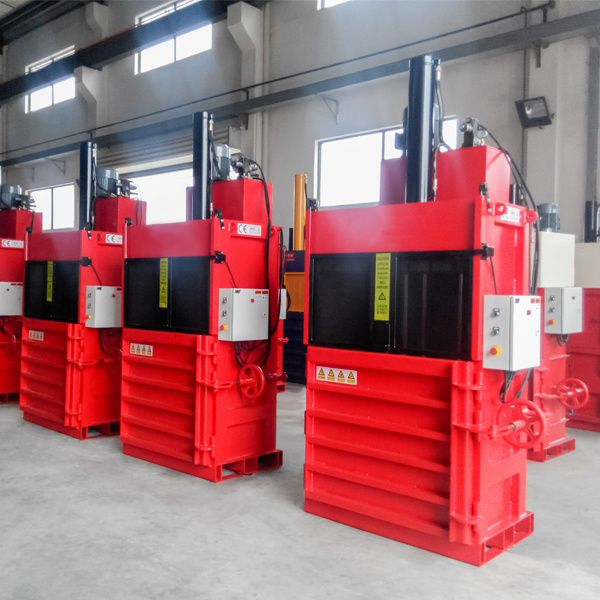

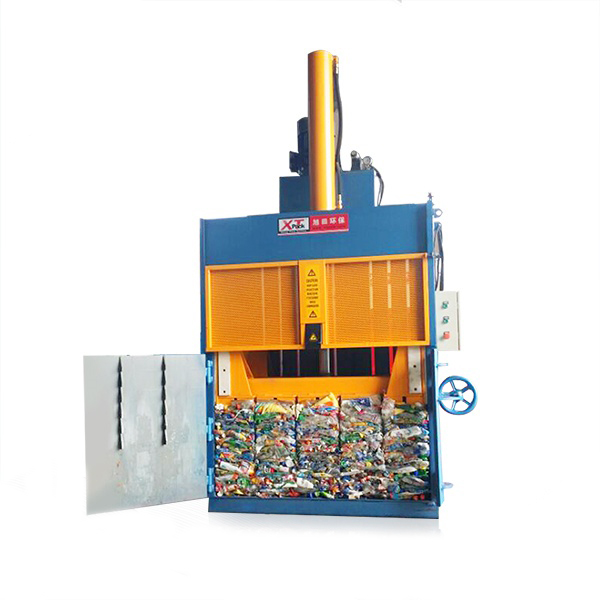

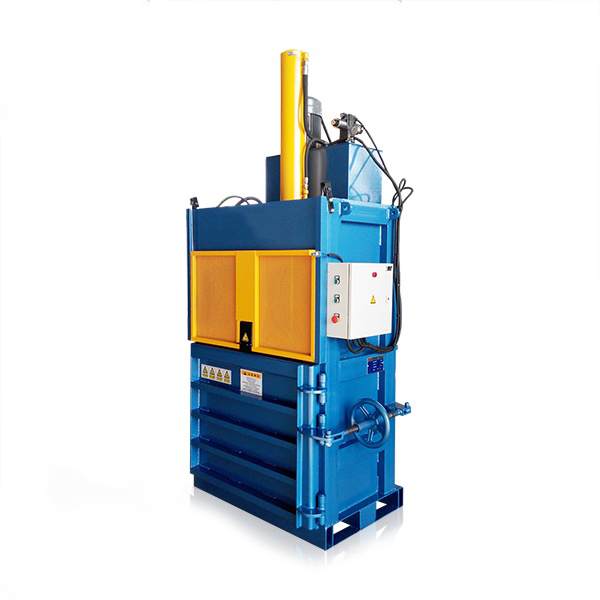

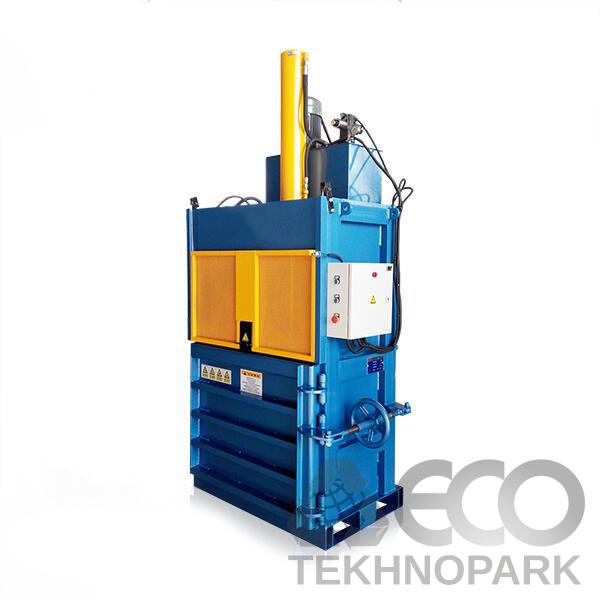

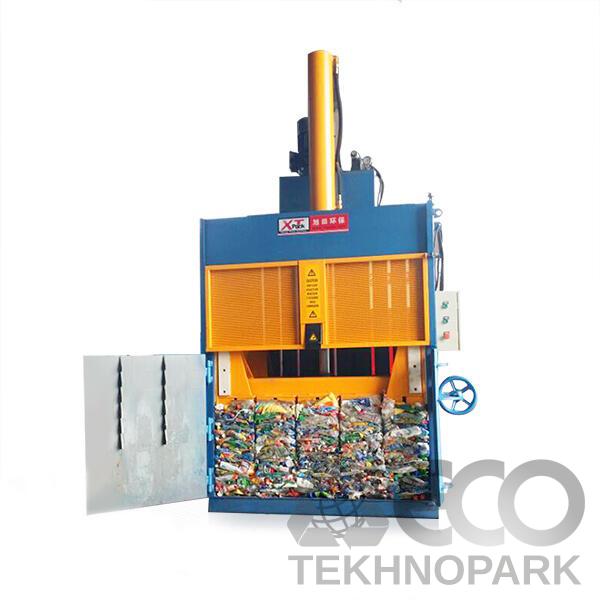

Cans / / Plastic / PET Bottle balers

Do you like our product?

Enquiry

The balers specially used for recycling the cans, PET bottles, oil tank etc. Widely used for compressing soft plastics like PE/PP Films.

Features of Cans / PET Bottle Balers:

Automatic chain bale ejector for quick and easy discharge of bales from the machine.
Wide feed opening door that lifts upwards automatically when the platen rises.
The ram stops descending when the feed gate is opened, ensuring operator safety.
Independent emergency stop function for safe operation.
Euro and U.S. standard anti-rebound gate structure to guarantee operational safety.
Special ram guide design prevents the platen from tilting during compression due to uneven material feeding.
Equipped with NOK seals from Japan for longer service life.
A.M.C. oil pipe joints from Japan ensure the machine is protected against oil leakage.
Unique direct-crossed motor and pump connection ensures 100% concentricity, replacing the typical coupling and extending the pump’s service life.

Model	300KL8060	400KL10060	500KL11070	300LE11070	500LE12080
Pressure	30tons	40tons	50tons	30tons	50tons
Feed Opening Size (L*H)	800*500mm	1000*500mm	1100*500mm	1100*500mm	1200*500mm
Baling Chamber Height	1500mm	1500mm	1500mm	1400mm	1500mm
Bale Size (LWH is adjustable)	800600(200-1000)mm	1000600(300-1000)mm	1100700(300-1000)mm	1100700(300-900)mm	1200800(400-1000)mm
Bale Weight	30-120kgs	60-180kgs	90-270kgs	60-150kgs	150-350kgs
Power	5.5kw	7.5kw	7.5kw	5.5kw	11kw
Machine Weight	1400kgs	1700kgs	1900kgs	1900kgs	2300kgs
Machine Overall Dimention	12808503300mm	148010003400mm	160011003500mm	150010503000mm	165012003300mm
