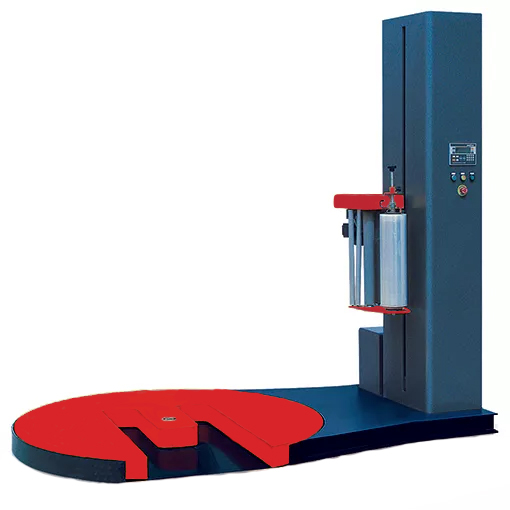

Wrapping machine with slot turntable BKS K1100M with E-Platform & Motorized Pre-Stretch Carriage for loads up to 2.7 meters

  • Warranty, m.: 12

The BKS K1100M is a vertical automatic pallet wrapping machine designed for securing palletized loads with stretch film. This model features a 1650 mm diameter turntable, a maximum load height of 2700 mm, and a maximum load capacity of 1000 kg.

Advantages:

  • Motorized Pre-Stretch Carriage delivers up to 300% film stretch, significantly reducing film consumption and cost.
  • E-Type Turntable designed for forklift access with an adjustable rotation speed of 0-12 rpm.
  • Emergency Stop Button for immediate machine halt and operator safety.
  • Photoelectric Sensor for automatic pallet height detection, ensuring consistent wrap patterns.
  • Integrated PLC Control System monitors all machine functions. Any operational fault is instantly displayed on the screen for simplified diagnostics and troubleshooting.
Name of the parameterMeaning
ModelBKS K1100M
Wrap size (L*W)(500-1200) х (500-1100)
Wrap height (max), mm2700
Turntable diameter, mm1650
Turntable rotary speed, rpm 0-12, adjustable by inverter
Turntable height, mm78
Turntable weight capacity (max)1000
Film Tension ControlMotorized carriage with pre-stretch up to 300%
Wrap efficiency20-40 Pallets/Hour
Turntable Power/Voltage, kW / V0,75
Carriage Power/Voltage, kW / V0,37
Mast Power/Voltage, kW / V0.37 kW / 220 V AC / 50 Hz
Machine Dimensions (LxWxH), mm2460 х 1650 х 2700
Machine Weight, kg550
