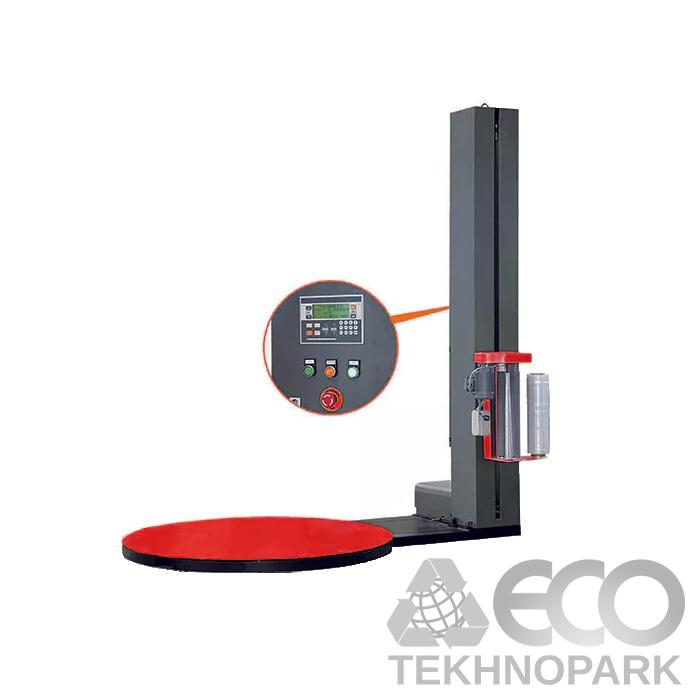

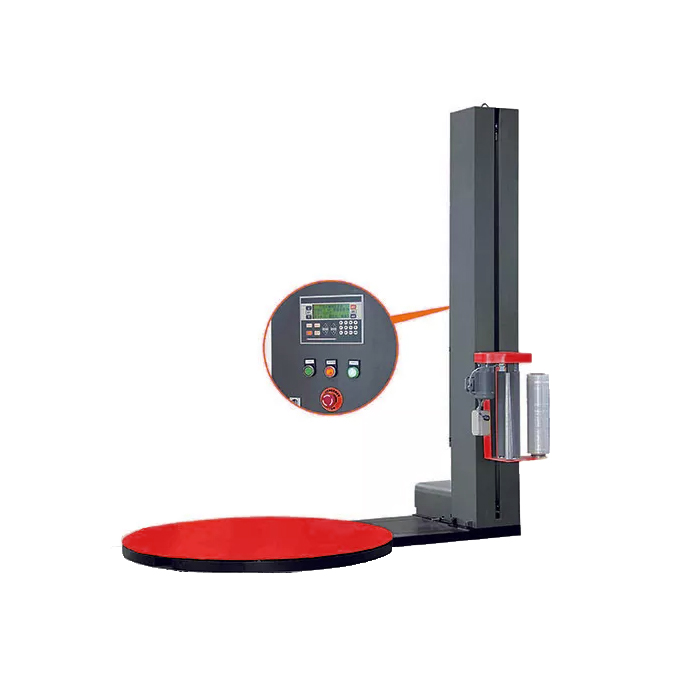

Vertical Wrapping machine BKS K1100 for loads up to 2.4 meters

  • Warranty, m.: 12

The BKS K1100 is a vertical automatic pallet wrapping machine designed to secure palletized loads with stretch film. The operator manually attaches the film to the load to initiate the cycle. This model features a 1650 mm turntable diameter, with a maximum load height of 2400 mm and a maximum load capacity of 2000 kg.

Advantages:

  • Remote Start / Stop Control for convenient operation.
  • One-Touch Emergency Stop button for enhanced safety.
  • Photoelectric Sensor for automatic pallet height detection.
  • Integrated PLC Controller monitors every stage of the wrapping process. In the event of a fault, an error signal is immediately displayed on the screen for quick troubleshooting.
Name of the parameterMeaning
ModelBKS K1100
Wrap size (L*W*H)1200x1200x2400
Wrap height (max), mm2400
Turntable diameter, mm1650
Turntable rotary speed, rpm 0-12, adjustable by inverter
Turntable height, mm78
Turntable weight capacity (max)2000
Film Tension Controlyes
Wrap efficiency20-40 Pallets/Hour
Memory for 10 Program Presetsyes
Turntable Power/Voltage, kW / V0,75
Carriage Power/Voltage, kW / V0,37
Mast Power/Voltage, kW / V0.37 kW / 220 V AC / 50 Hz
Machine Dimensions (LxWxH), mm2460 х 1650 х 2700
Machine Weight, kg450
