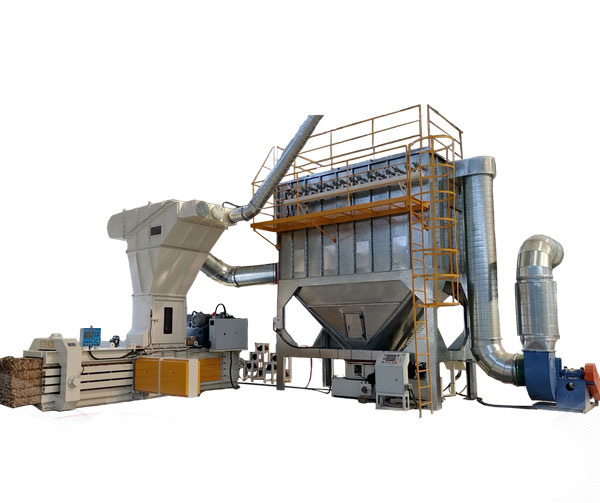

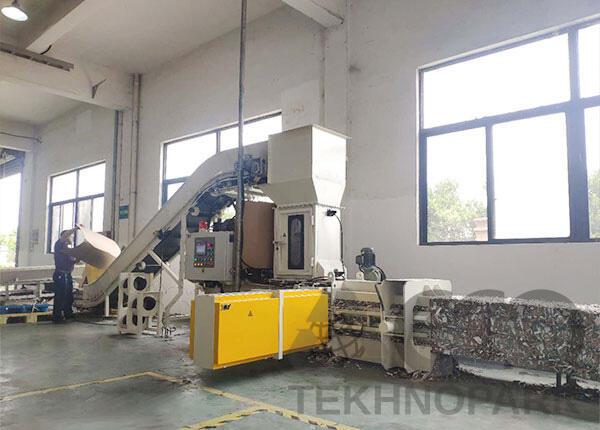

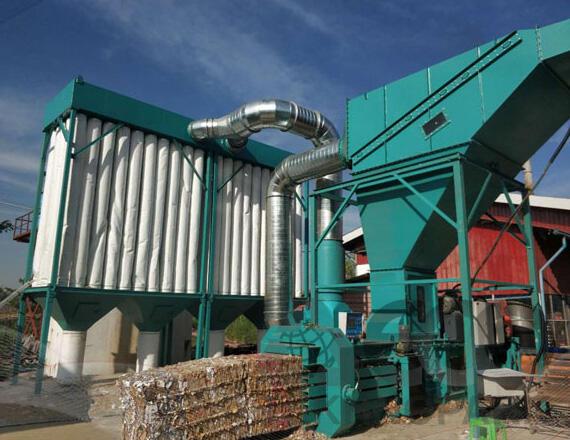

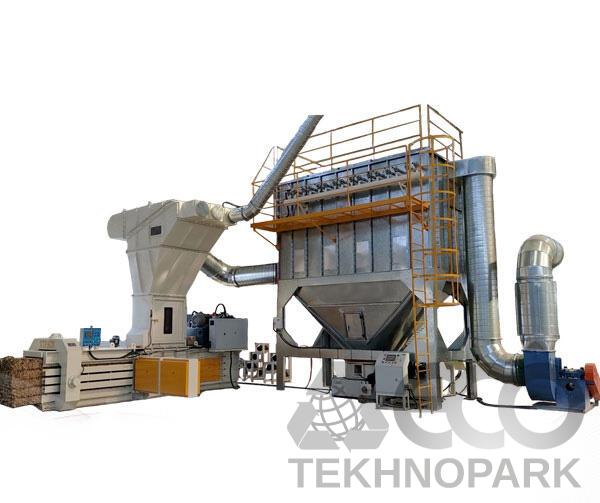

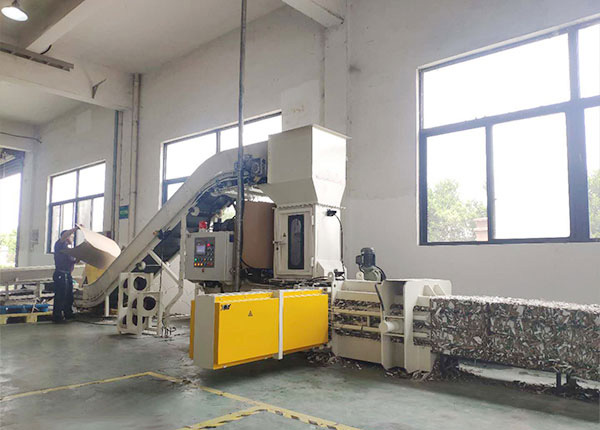

A compact press with an aspiration system that provides a pressing force of 20 to 60 tons is used for recycling waste paper, cardboard boxes/ cardboard scraps /waste scraps, which are widely used in packaging/crimping enterprises, paper/printing enterprises.
The compact press with integrated aspiration system is designed for processing waste paper, paper/cardboard offcuts, cardboard boxes, and other recyclable materials commonly used in the production of paper/cardboard packaging, corrugated paper, and printing facilities.
Advantages:

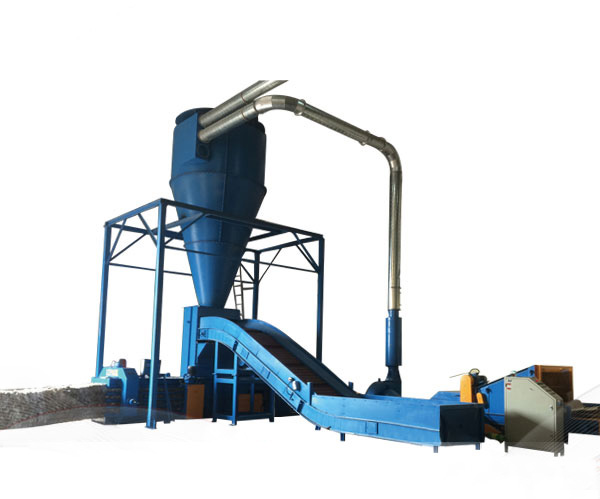

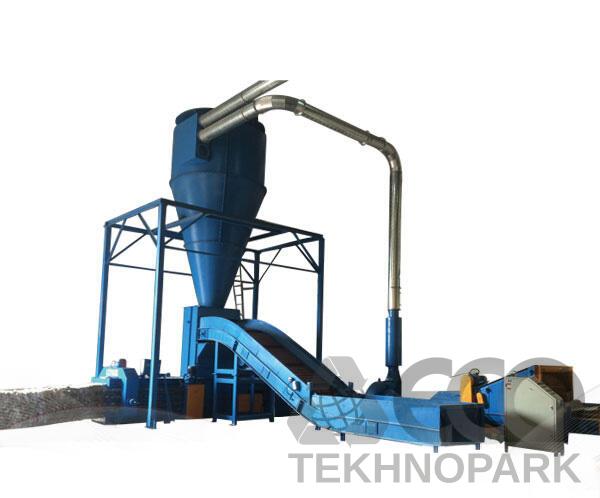

— Powerful cyclone is optional for rapid sucking trims/scraps from the corrugation production line;
— Photoelectric switch activates baler when charge box is full;
— Unique double-cutting desing of cutters improves the cutting efficiency and lengthens the lifespan of the cutters;
— Particular anti-slide desing of the machine makes nicer bales;
— Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient;
— Automatically detect and show the errors of the machine which improve the machine inspection efficiency;
— Use high quality hydraulic system from Taiwan, ensures the stable running of the machine.
| Model | XTY-200W5050-15 | XTY-400W7575-20 | XTY-600W7575L-25 | XTY-400W7280-20 | XTY-600W7585-25 |
|---|---|---|---|---|---|
| Pressure | 20tons | 40tons | 60tons | 40tons | 60tons |
| Main Motor Power | 11kw | 15kw | 18.5kw | 15kw | 18.5kw |
| Cooling System | air cooler/water cooler | air cooler/water cooler | air cooler/water cooler | air cooler/water cooler | air cooler/water cooler |
| Cycle time | 19sec | 17sec | 24sec | 20sec | 16sec |
| Oil Tank Capacity | 280L | 540L | 540L | 540L | 600L |
| Number of Belting | 3lines | 3lines | 4lines | 4lines | 4lines |
| Diameter of The Strapping Wire | 2.4-3.2mm | 2.4-3.2mm | 2.4-3.2mm | 2.4-3.2mm | 2.4-3.2mm |
| Feed Opening Size (L*W) | 625х480mm | 1200х720mm | 1600х720mm | 1200х690mm | 1200х720mm |
| Chamber Size (L*W*H) | 900х500х500mm | 1600х750х750mm | 2100х750х750mm | 1600х720х800mm | 1600х750х850mm |
| Bale Size (L*W*H) | Lх500х500mm | Lх750х750mm | Lх750х750mm | Lх720х800mm | Lх750х850mm |
| Bale Density (OCC) | 350-450kgs/m3 | 350-450kgs/m3 | 350-450kgs/m3 | 350-450kgs/m3 | 380-480kgs/m3 |
| Throughput (30-60kgs/m3) | 1-1.5tons/h | 1.5-3tons/h | 2-3.5tons/h | 1.5-3tons/h | 2.5-5tons/h |
| Machine Weight | 3tons | 7tons | 8tons | 7tons | 8tons |
| Machine Overall Dimension | 3600х2500х1650mm | 5950х3200х2500mm | 7000х3200х2500mm | 5950х3200х2500mm | 6100х3250х2500mm |
| Feeding Device (Optional) | aspiration system / conveyor | aspiration system / conveyor | aspiration system / conveyor | aspiration system / conveyor | aspiration system / conveyor |
