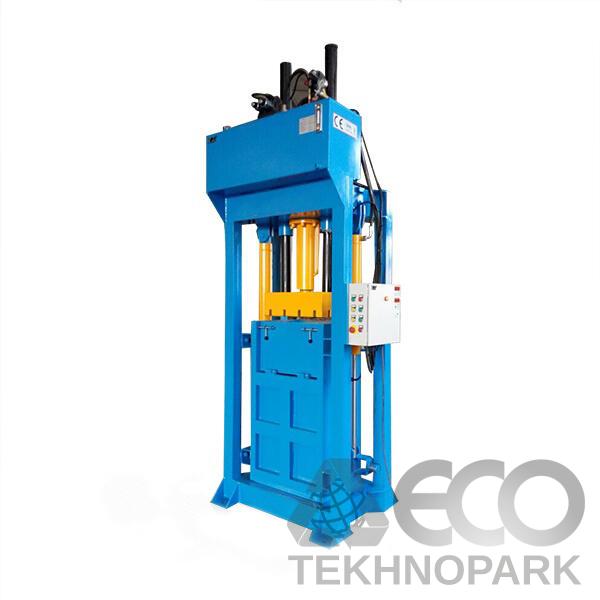

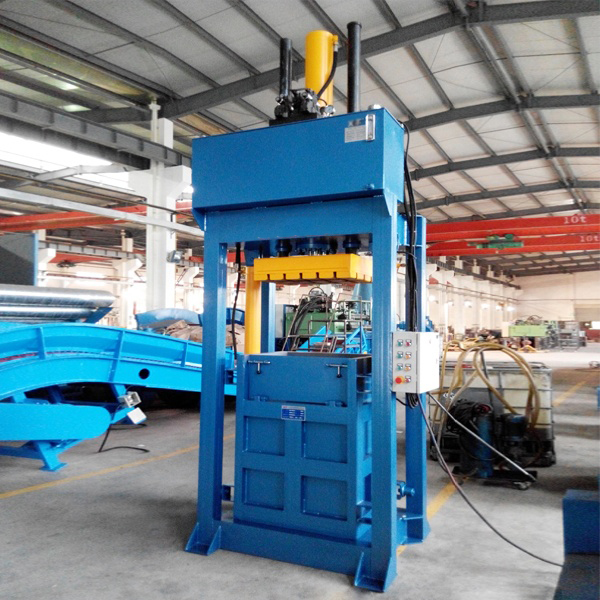

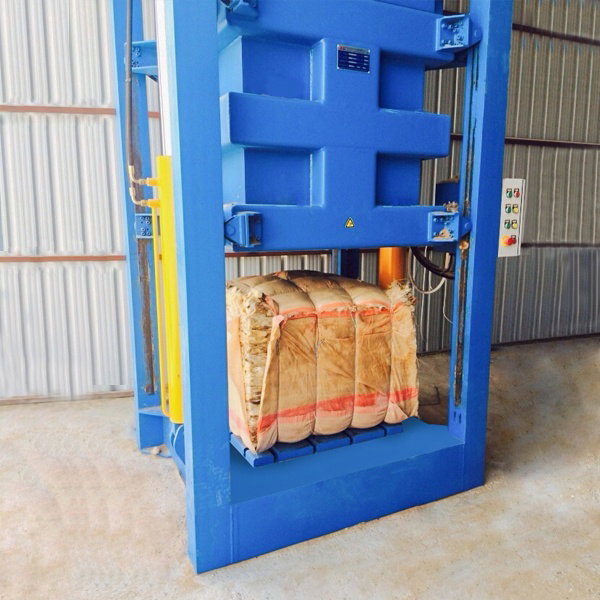

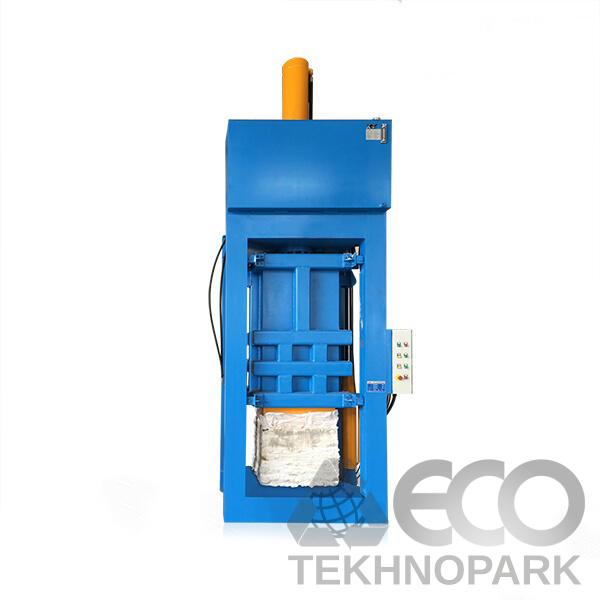

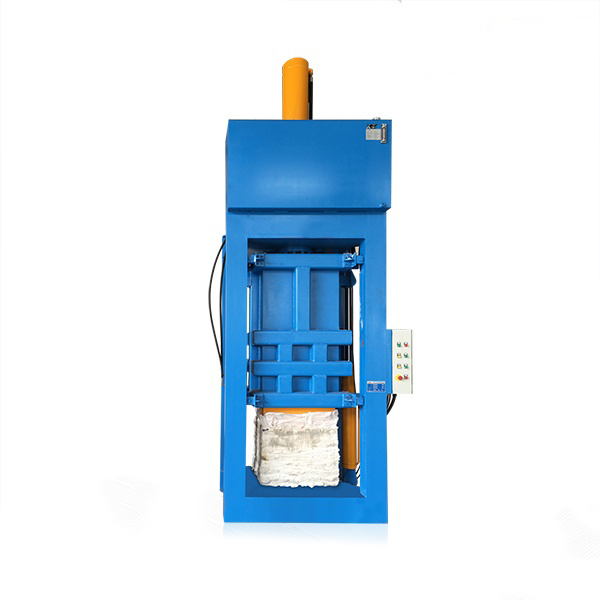

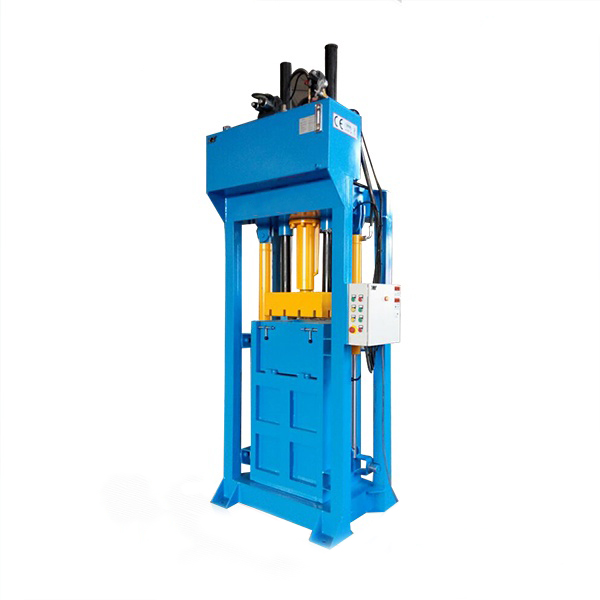

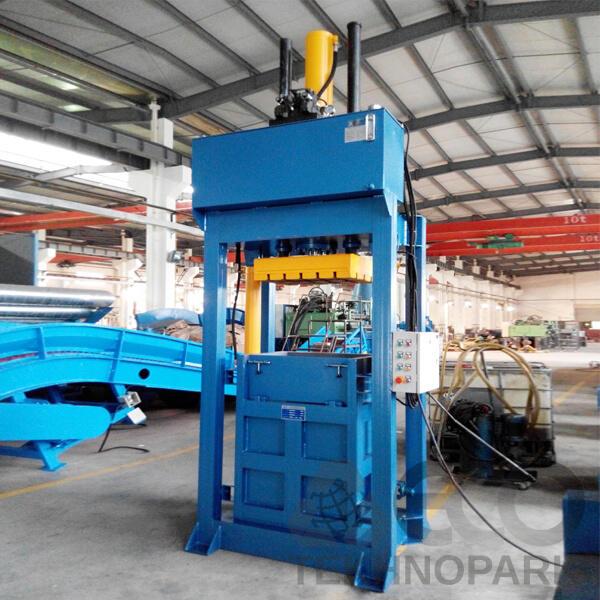

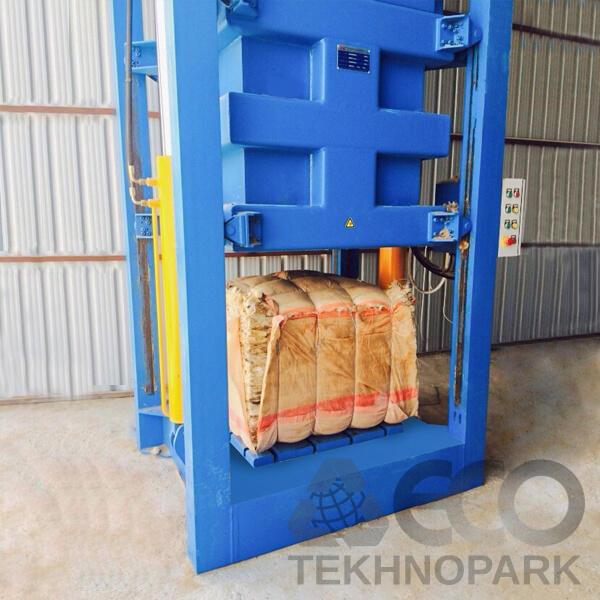

Textile / Clothes / Wool / Cotton balers

Do you like our product?

Widely appied by second-hand clothes, wool, cotton recycling plants for compressing second-hand clothing, comforters, shoes, wool, cotton etc.

  • Warranty, m.: 12

Features of Textile/ Clothes/ Wool/ Cotton Balers:

  • Hydraulic lifting chamber door improves the work efficiency, conveniently for packaging and the '# tying
    The ram will stop running downwards when the feeding gate is opened which ensure the safety of the
    operation
  • Equipped with independent emergency stop for safe operation
  • Special ram guides design makes the platen not slope because of uneven materials feedings during
    compression
  • Equipped with NOK seals that from Japan means longer lifespan of the seals
  • Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage
    problems
  • Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent
    concentricity, which replacing the common coupling connection so that extend the lifespan of the pump
Model300LTX6040 / 300LTX7040500LTX75551200LTX75401500LTX11080
Pressure30tons50tons120tons150tons
Feed Opening Size (L*H)600*400mm / 700*400mm750*350mm750*450mm1100*600=0mm
Baling Chamber Height1250mm / 1200mm1850mm1700mm1850mm
Bale Size (L*W*H, H is adjustable)630*430*(400-600)mm / 730*430*(250-600)mm800*600*(400-550)mm800*450*(350-500)mm1100*850*(500-900)mm
Bale Weight40-60kgs80-120kgs90-150kgs300-400kgs
Power7.5kw11kw18.5kw18.5kw
Machine Weight1800kgs2800kgs3800kgs6000kgs
Machine Overall Dimension1250*800*3700mm / 1200*700*3500mm1550*1000*4200mm1600*1000*4550mm2000*1450*4300mm
