DS-4000 Rotary Screen

DS-4000 Rotary Screen DS-4000 Rotary Screen
DS-4000 Rotary Screen миниатюра
DS-4000 Rotary Screen миниатюра

Do you like our product?

Enquiry

Would you like to contact our team?

Mikhail

Mikhail

A stationary rotary screen (trommel) designed to remove fine fraction and organic material from a mixed MSW stream. Throughput capacity of up to 20 tons per hour.

  • Warranty, m.: 12

The RMZ DS-4000 is a stationary rotary screen (trommel) designed to remove fine fraction and organic material from a mixed Municipal Solid Waste (MSW) stream, with a throughput capacity of up to 20 t/h.

It can be used to upgrade existing sorting facilities to improve their efficiency, as well as in new recycling plants.

Advantages:

  • Mounted on vibration-damping supports.
  • High specific productivity per unit area.
  • Smooth, stepless regulation of throughput capacity.
  • High operational reliability and simple installation.
  • Can be equipped with an undersize conveyor for fines collection.
  • Modular design allows for the installation of a screen with the required length.
Name of the parameterMeaning
DesignStationary

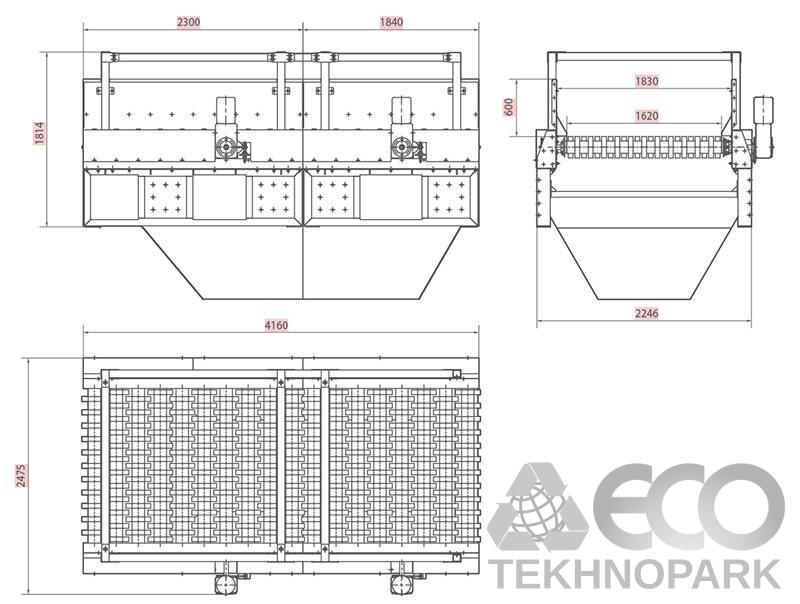

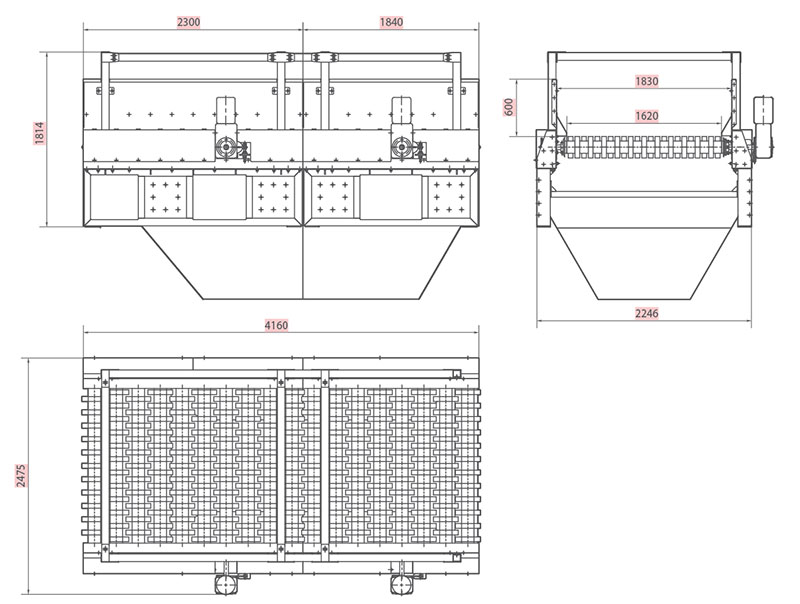

Overall dimensions, mm4160/6000*2475*1814
Power, kW11/16,5*
Working surface width, mm1620
Working surface length, mm4000/6000*
Rotation speed of rotor element, rpm137, smooth adjustment
Design typeModular type
Working elementshexagonal shape, material — 09G2S
Independent electrical connection per section, kW5,5
Throughput capacity, t/h20
Side wall height, mm600
Mesh size (average), mm80
Weight, t5,5/7
Installation parameters
Platform, mm2500х4500
Connection3P+N+PE,380V
