The MS 3000 shredder can work with the following materials: green waste, pre-shredded old wood, pallets, bark, peat, biogas substrate (for example, sugar beet, potatoes, onions)

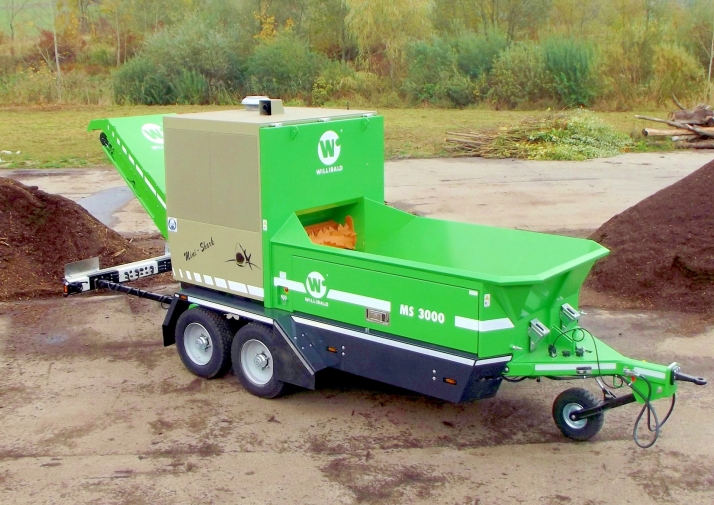

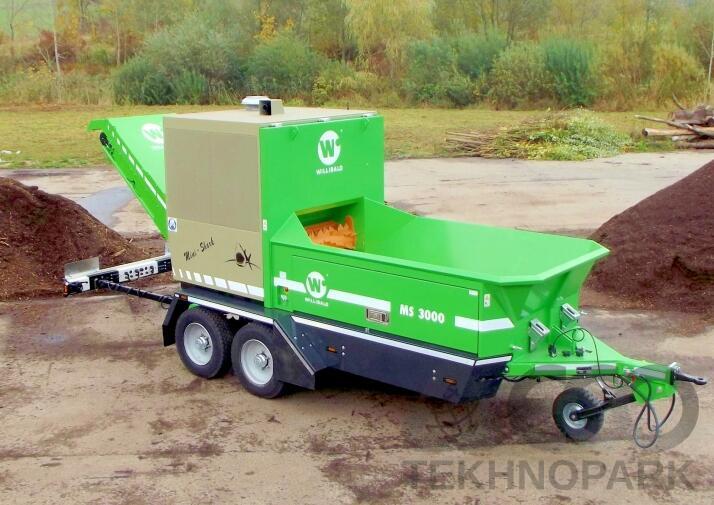

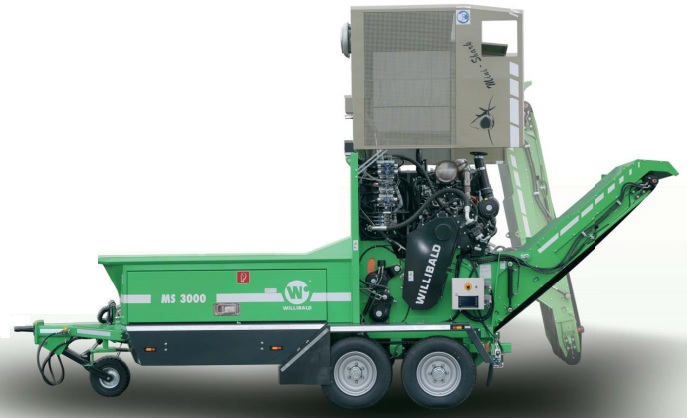

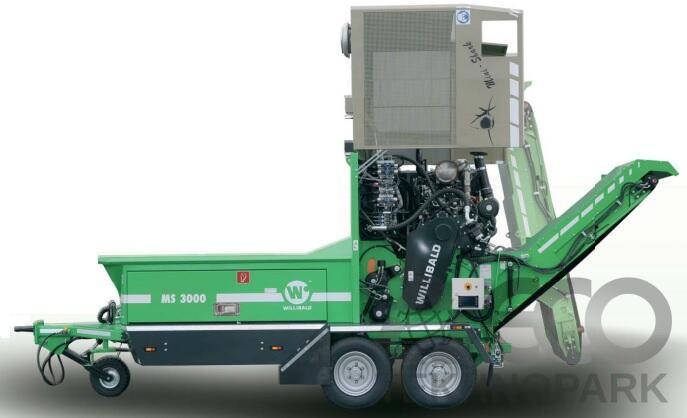

Minishark 3000 is an equipment that provides optimal results at lower cost. The MS 3000 is the sequel to the Minimax 2000, which has been enhanced with components from the EP 5500 Shark series.
Despite its compact size, the MS 3000 impresses with its efficiency, economy and reliability. Minishark can recycle a wide range of materials, from environmentally friendly waste to compost materials, as well as for the destruction of wood and wooden packaging. Depending on the quality of the wood, it can be recycled into reusable wood shavings, which are ideal for burning to generate energy.

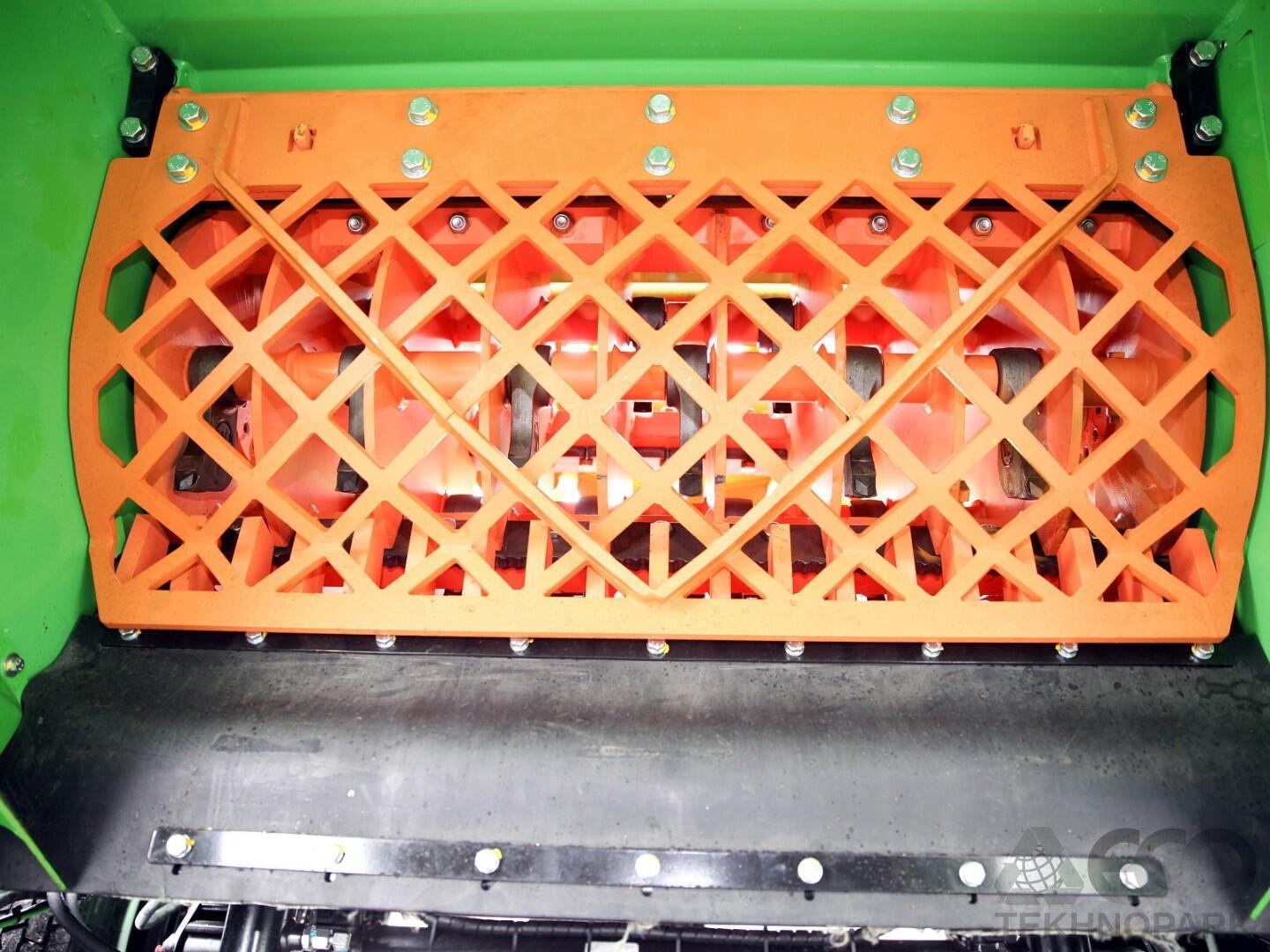

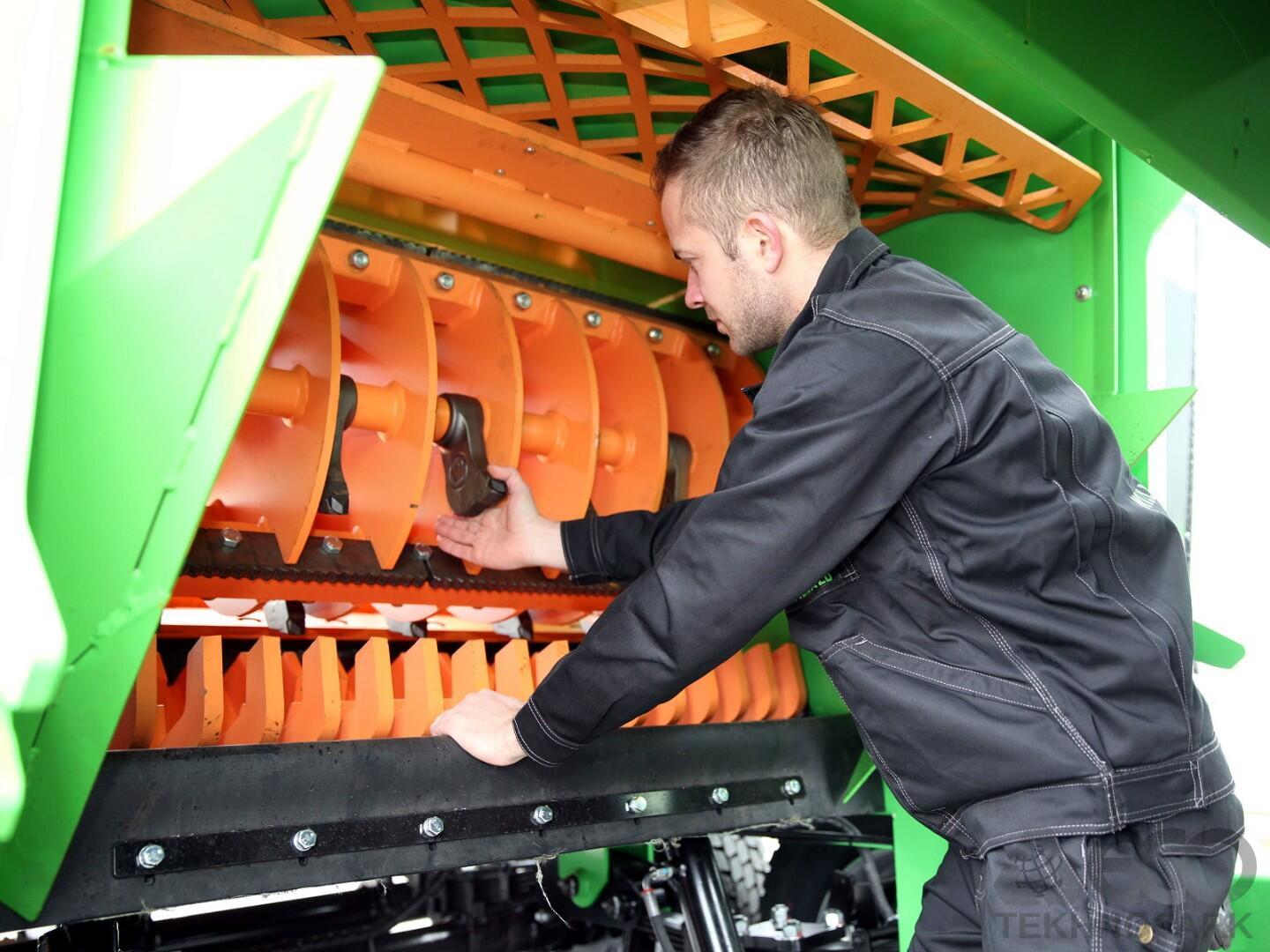

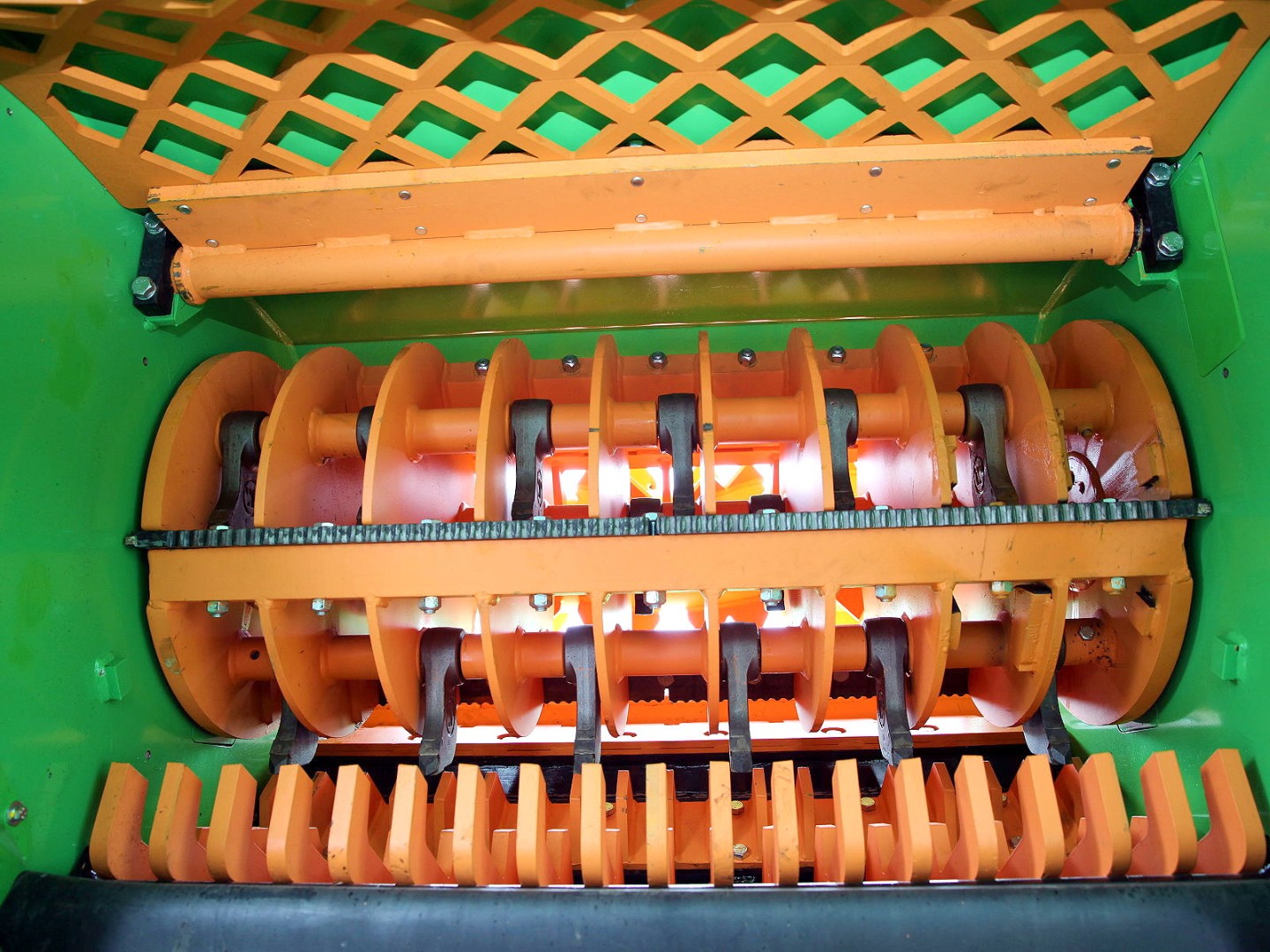

Depending on the requirements, one of two types of rotors can be selected:
The MS 3000 shredder can work with the following materials: green waste, pre-shredded old wood, pallets, bark, peat, biogas substrate (for example, sugar beet, potatoes, onions)
Machine Features:
Additional options:
| Conveyor belt; 2.7m long folding hydra | # | ° |
| Magnetic Guide Roller | ° | |

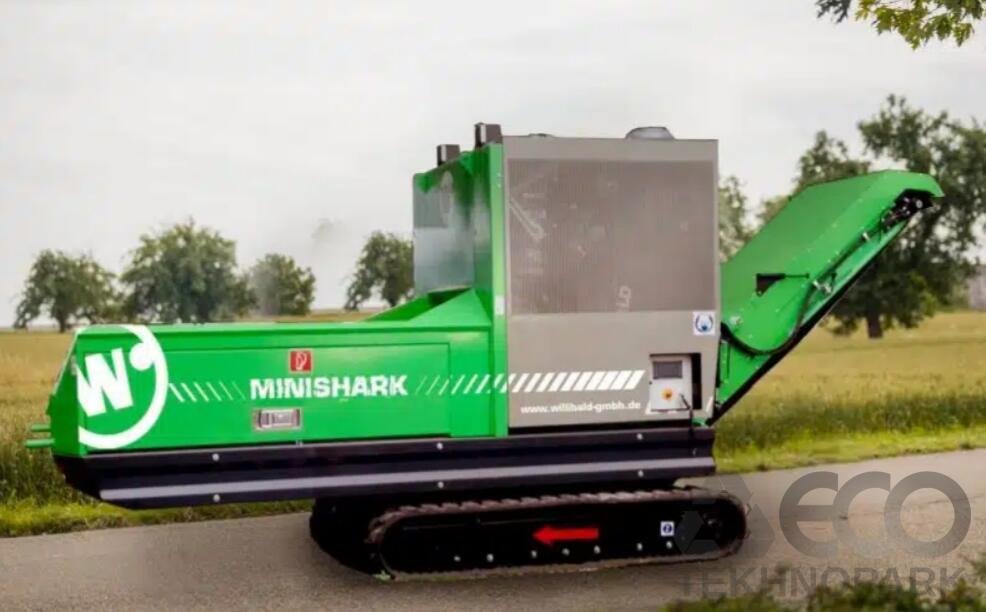

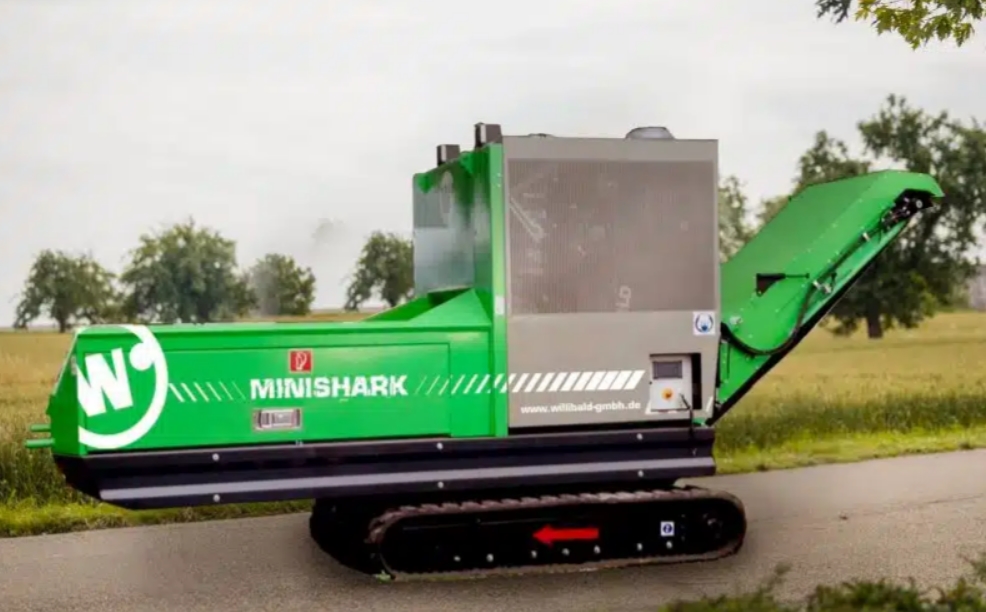

| Crawler Drive | # | ° |
| Remote Control | ° | |
| Central Lubrication | ° | |
| hydr. Axle Extractor | # | ° |
| hydr. Support Wheel | # | ° |
| Reversible Fan | # | ° |
| LED work light | # | ° |
| Water Spray System | ° | |
| Trailer ring | ° | |
| Special Paint | ° | |
| Biological Oil | ° | |
| Diesel Particulate Filter | ° |
° - option
# - can be controlled by remote control.

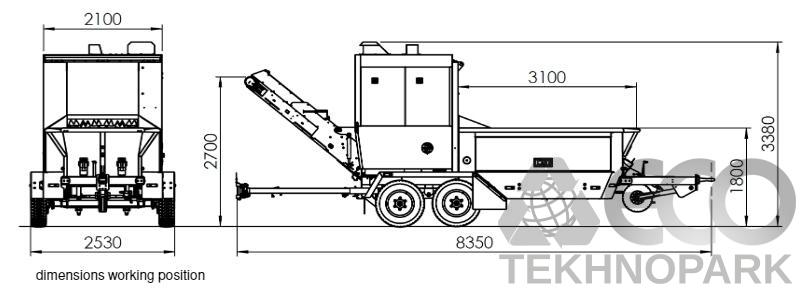

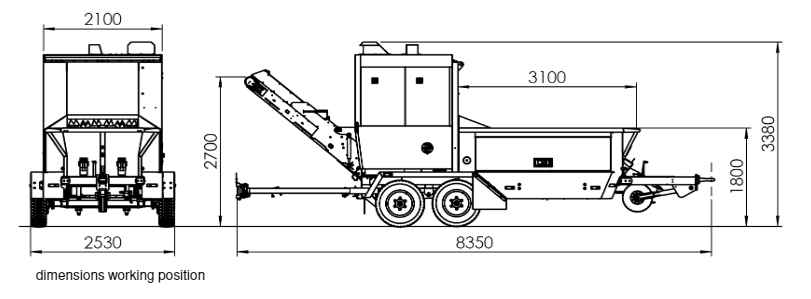

| Transport Dimensions (LxWxH), mm | 8350x2530x3380 | ||

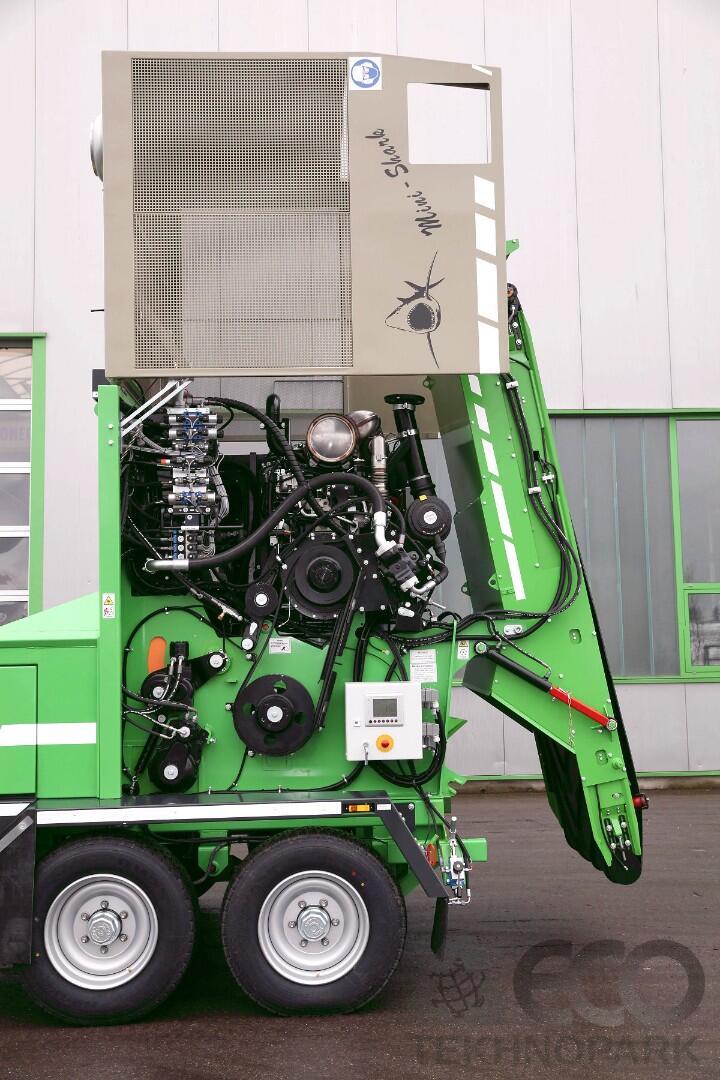

| Motor | Standard | Upgrade | |
| maximum Performance (kW/HP) | 130/176 | 140/190 | |
| Capacity (cc) | 4400 | 440 | |
| Nominal Rotation Speed (rpm) | 1400-2200 | 1400-2000 | |
| Rotation Speed at maximal Torque (rpm) | 1400 | 1400 | |
| maximum Torque (Nm) | 750 | 815 | |
| CO2 - Emission (NRTC) (g/kWh) | 673,76 | ||
| Fuel capacity (l) | 130 | ||
| chassis | 2-axle-central carriage, for 80 km/h according to StVZO | ||
| Permissible Total Weight (kg) | 10000 | ||
| Rotor variant | |||
| Weight equipped | ~550 | ||
| Diameter | 700 | ||
| maximal Rotation Speed | 1550 | 1800 | |

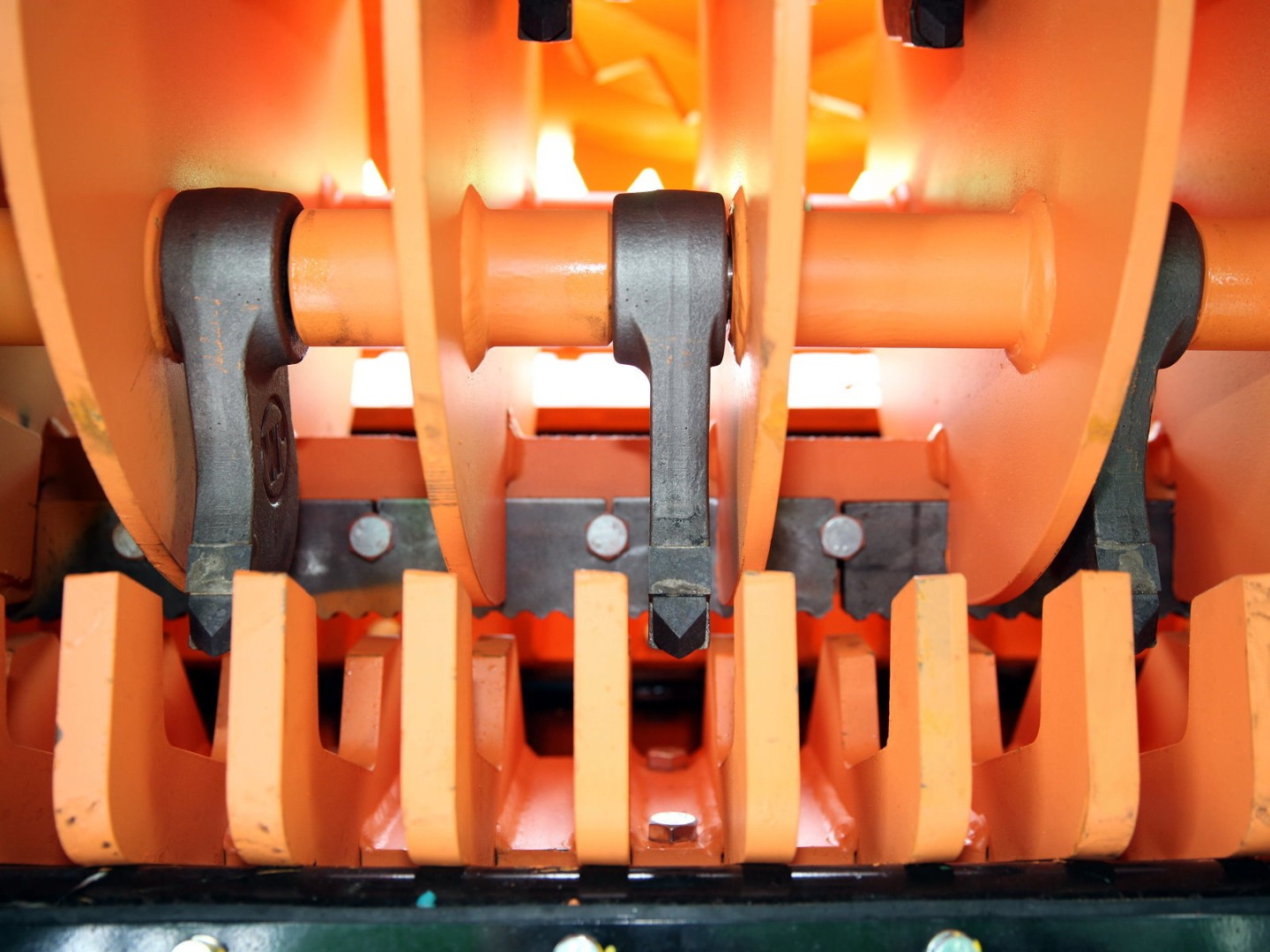

| Flail weight | ~3,5 | ||
| Discharge Conveyor (rubber band) | |||
| Dropping Height (mm) | 2700 | ||
| Width (mm) | 1200 | ||
| Speed (m/sec) | max 4,5 | ||
| Outputs | |||
| Green Waste (m³/h) | up to 60 | ||
| Matured Timber (m³/h) | up to 40 | ||
| Bark (m³/h) | up to 60 | ||
| Livestock excrement (m³/h) | up to 50 | ||
