A self-cleaning overhead magnetic separator designed for extracting large ferrous metal inclusions from a stream of municipal solid waste (MSW) moving on a conveyor.

Warranty, m.: 12

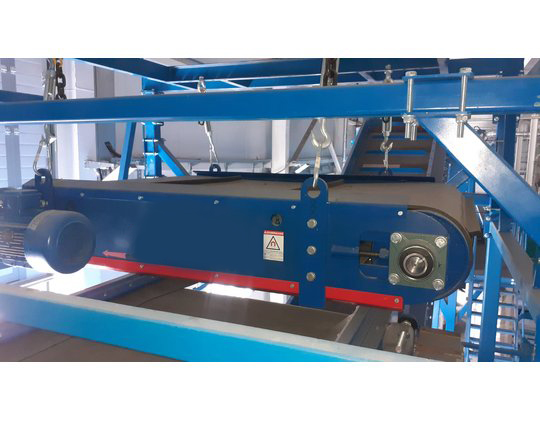

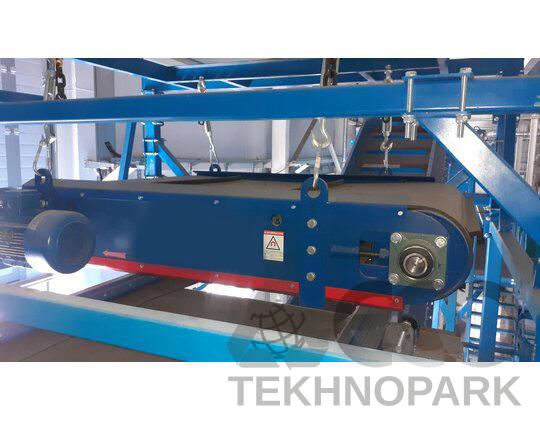

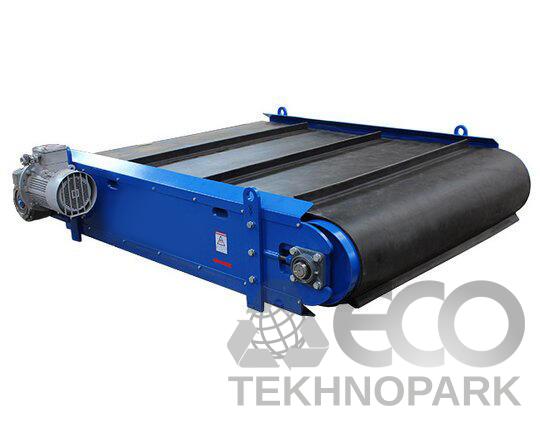

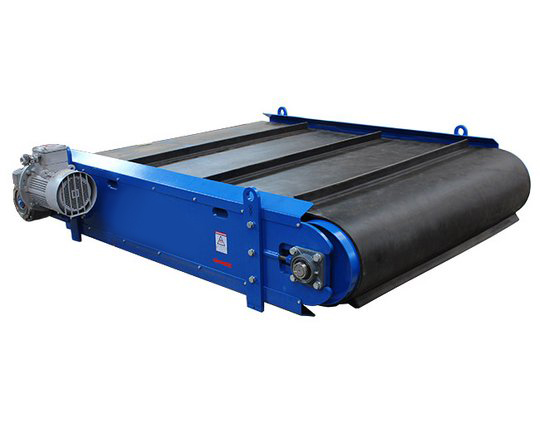

A self-cleaning overhead magnetic separator (suspended magnet) designed for extracting large ferrous metal inclusions from a stream of municipal solid waste (MSW) moving on a conveyor.

Parameters of magnetic separators of ERG SMPA series for MSW sorting:

Extended-length magnetic system based on permanent magnets for superior reach and strength.
Effective ejection of the magnetic fraction beyond the conveyor belt for clean separation.
Deep magnetic field penetration with a recovery depth of up to 350 mm.
High lifting capacity, capable of extracting ferrous metal objects weighing up to 30 kg.
Reliable components from leading global manufacturers ensure durability and uptime.
Heavy-duty three-layer conveyor belt with a reinforced insert for long service life.
Fully automatic self-cleaning operation for continuous, unmanned processing.
Universal mounting solution for easy integration into any existing sorting line.
Compatible with mobile shredders and crushers; can be equipped with a hydraulic motor drive for standalone applications.
EAC Declaration of Conformity with TR CU requirements.

Model	SMPA 1000 for MSW	SMPA 1200 for MSW	SMPA 1400 for MSW
Magnetic system working width, mm	1000	1200	1400
Recovery depth*, mm	up to 350	up to 350	up to350
Electric Motor power, kW	3	3	3
*depends on specific installation settings

FAQ

The principle of operation of the separator is to "attract" particles containing ferrous metals by a permanent magnetic field to a moving conveyor belt, followed by their discharge into a special container.

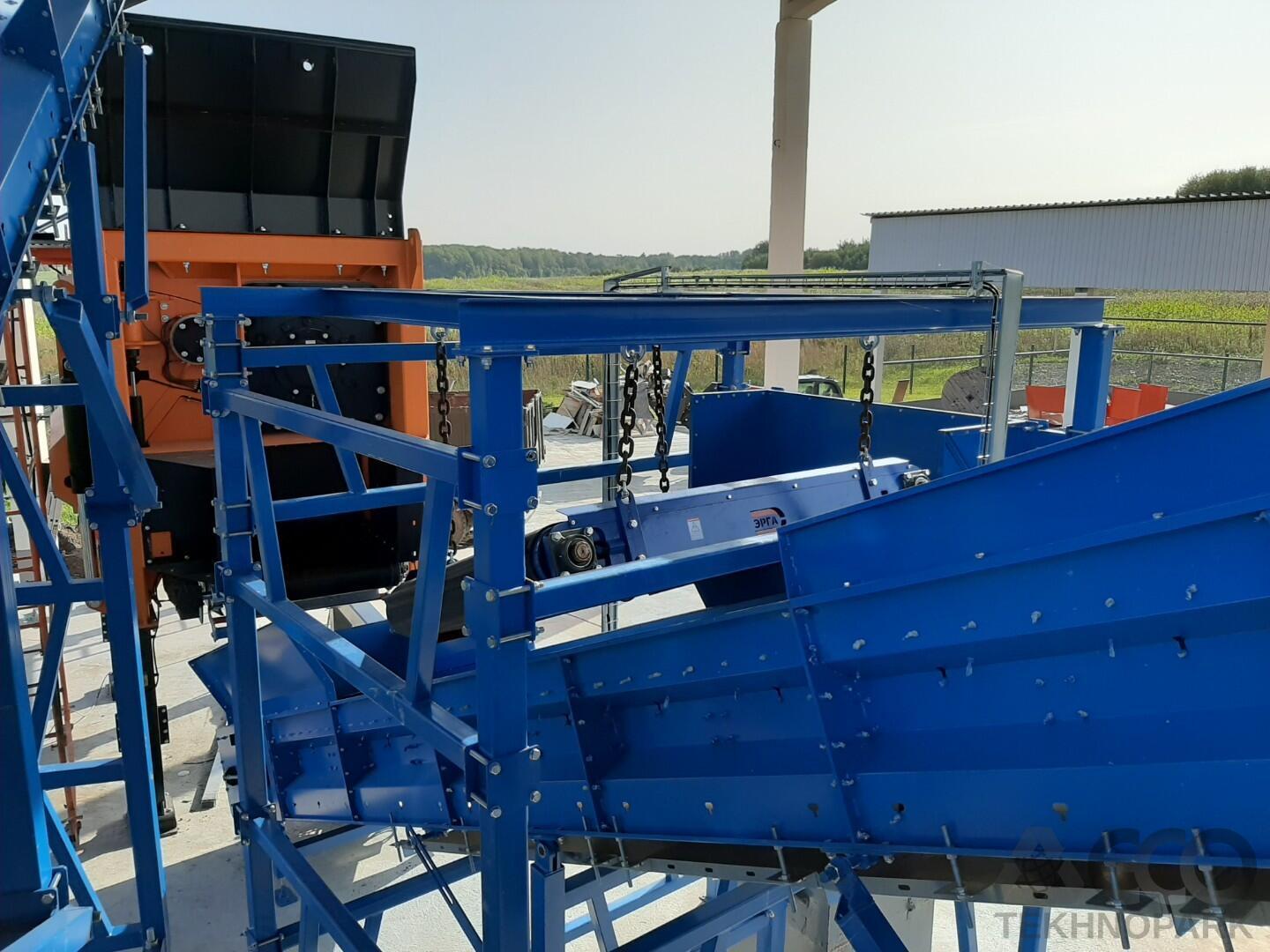

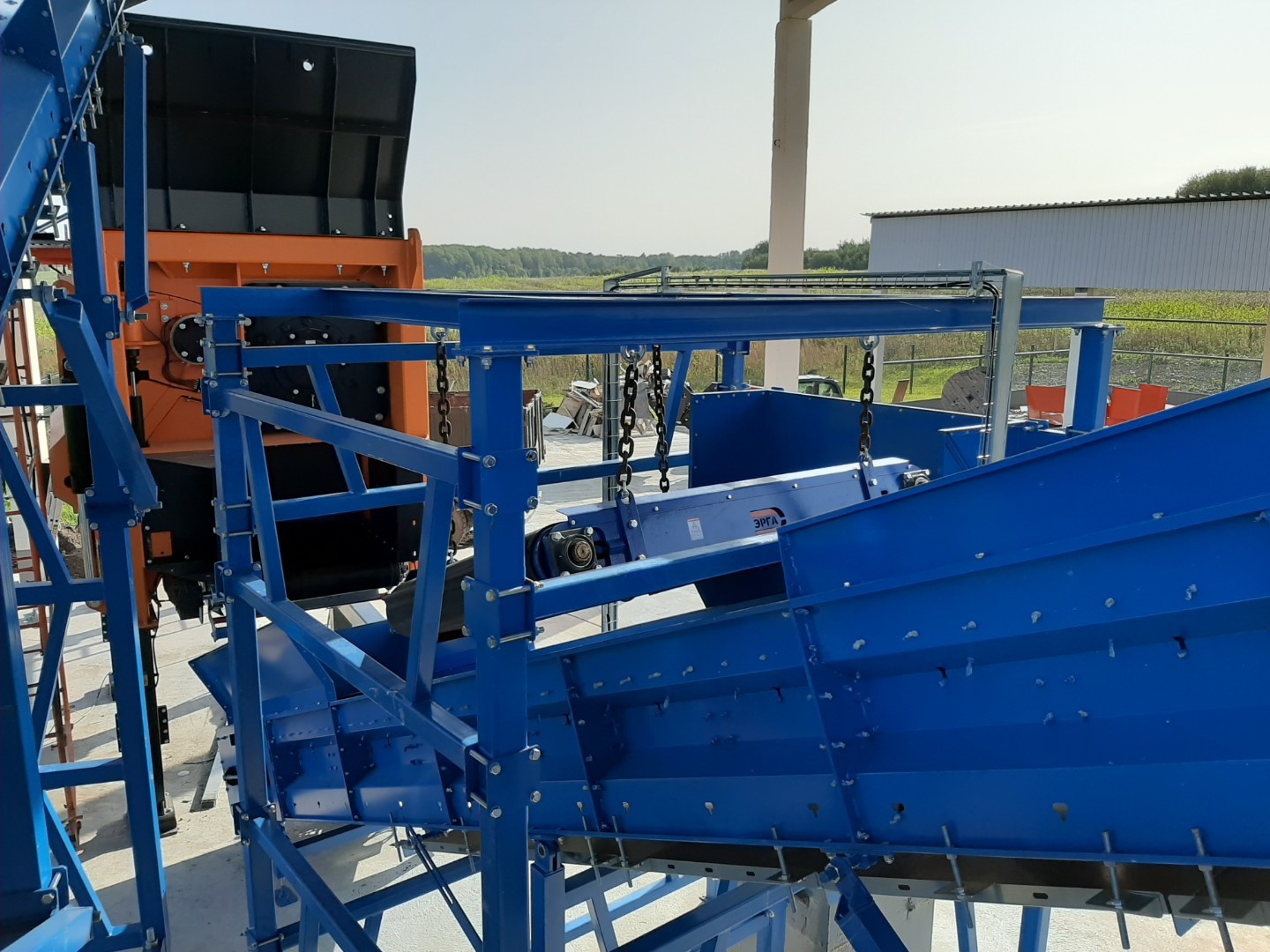

Iron traps are part of many waste sorting lines. One of the latest facilities where ferrous metal separators are used is a Wood waste-to-wood Chips Processing Line and a Waste sorting Line.

The Ferrous Metal Separator is designed to extract items containing ferrous metals or metal-bearing particles from waste streams. It is a critical component of any waste sorting line.

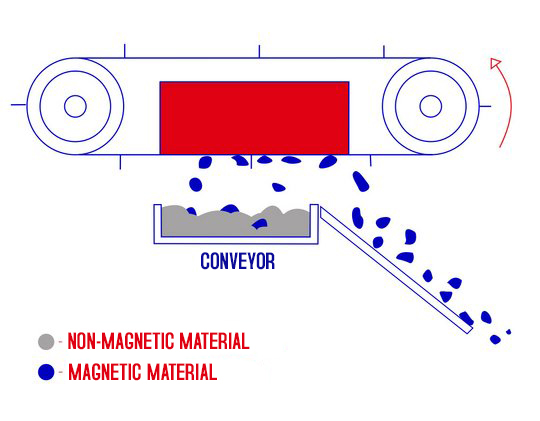

The separator operates by using a permanent magnetic field to attract ferrous metal items to a moving conveyor belt, which then discharges them into a collection area. The separator consists of two drums: a drive drum with an autonomous, non-adjustable rotation drive, and an idler drum. The magnetic separator's conveyor is positioned perpendicular to and up to 250 mm above the main waste conveyor belt. As waste moves through the separator's magnetic field zone—generated by permanent magnets over a specific length—ferrous fractions are attracted to the separator. Their movement and discharge are facilitated by the motion of the separator's own conveyor belt.
