An air separator designed to separate light materials (feathers, paper, plastic bags, fallen leaves, etc.) from heavier ones.

  • Warranty, m.: 12

The SFX800 Air Separator utilizes an adjustable airflow as the sorting medium. It carries light materials (feathers, paper, plastic bags, fallen leaves, etc.) a significant distance, either vertically or horizontally, while heavier materials fall or are thrown a shorter horizontal distance.

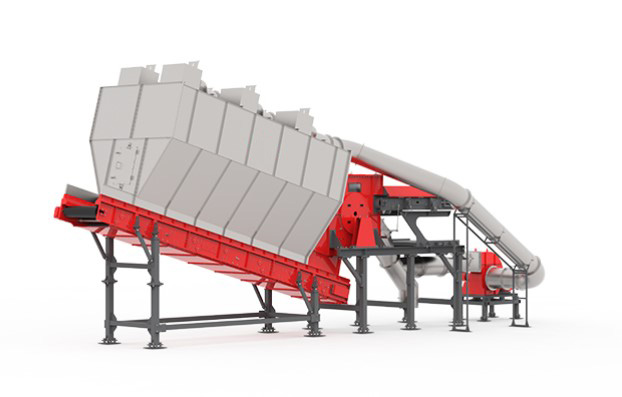

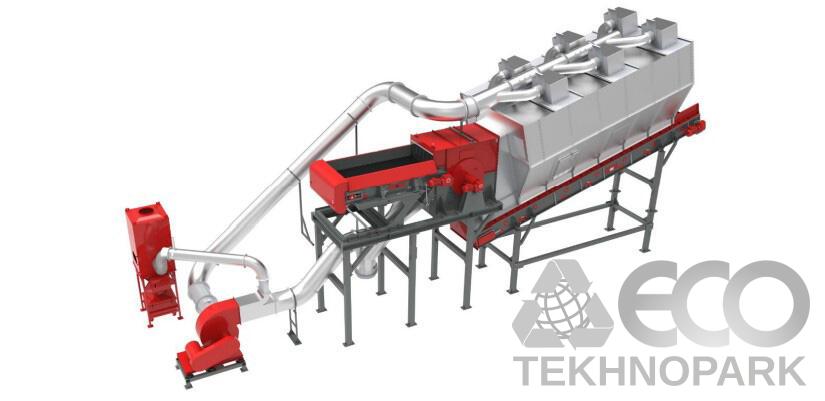

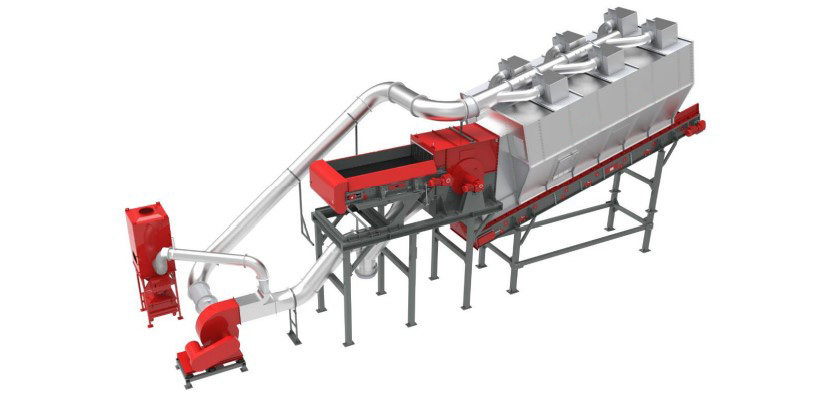

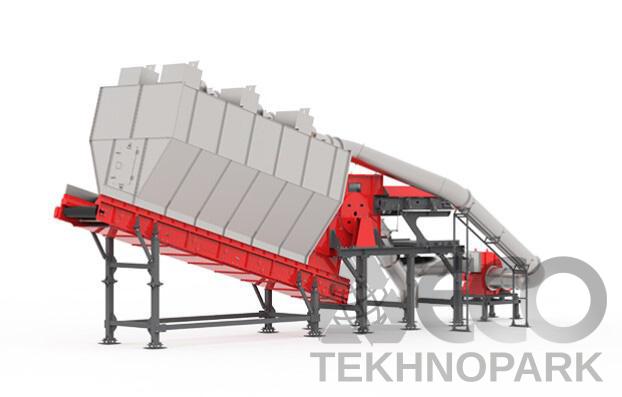

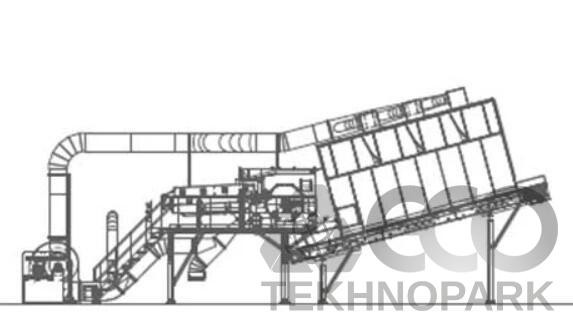

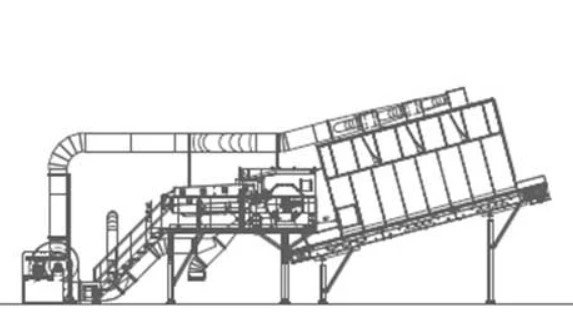

The main structure of the air separator includes: a feed conveyor, a rotating drum, a fan, a heavy materials conveyor, a fan separator, a settling chamber, a light materials conveyor, and a dust filter.

Advantages:

  • Simple design for comfortable operation and maintenance.
  • High sorting efficiency.
  • Adjustable air supply angle (0-90°).
  • Flexible air volume control.

Applications:

  • Separation of pre-shredded bulky waste.
  • Separation of industrial waste.
  • Separation of pre-shredded municipal solid waste (MSW).
  • Separation of waste from packaging paper production factories.
  • Pre-sorted waste.

Sorting Efficiency:



Name of the parameterMeaning
ModelSFX800
Total motor power, kW30.95
Blower motor power, kW15
Air flow, m³/h 11 000
Full pressure, Pa 2500
Size inlet, mm<300
Motor power of feeding conveyor, kW4
Speed of feeding conveyor, m/s1-2
Motor power of outlet conveyor belt, kW5.5
Sorting efficiency, %>90
Power supply, V/Hz 380/50
Motor brandINVT
Separate point air flow speedAdjustable, depending on material humidity and density
Feed belt and separation wheel distance Adjustable
Feeding belt and separation wheel angle 0-5°, adjustable
