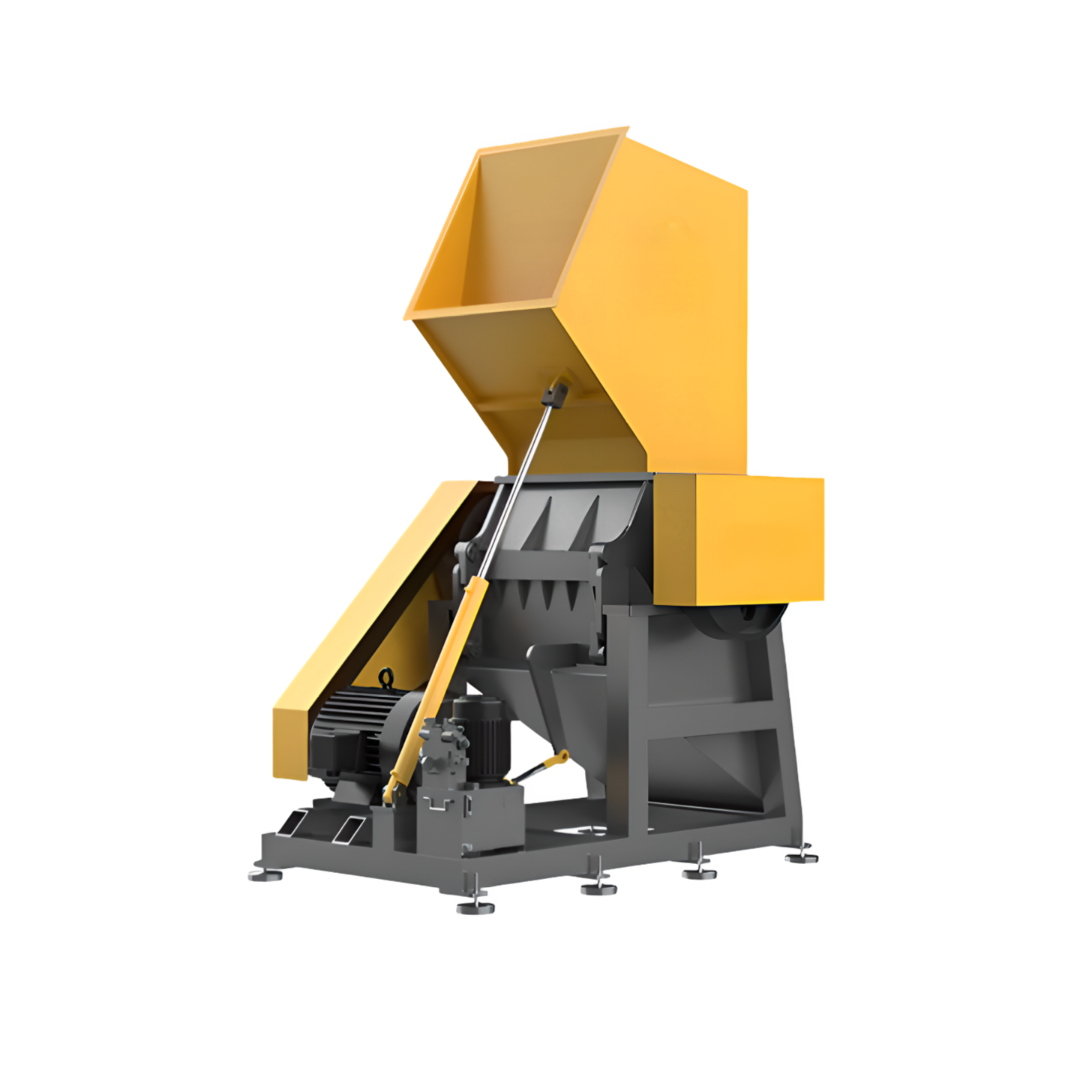

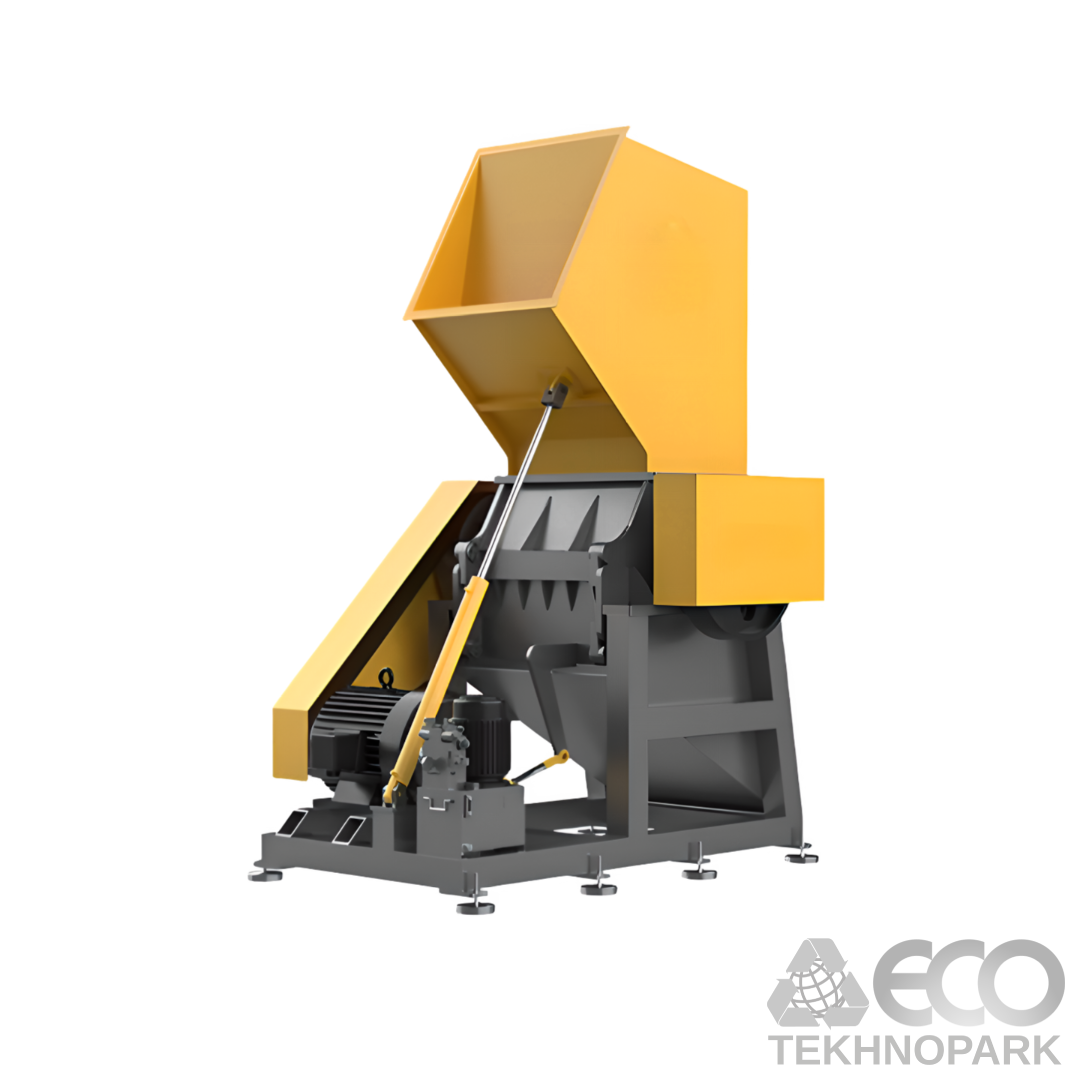

Przemysłowy rozdrabniacz do rur HDPE/PVC z powiększonym lejem zasypowym

Cena dostępna na zapytanie

Twój osobisty menedżer

Artur

Artur

A waste crusher is designed to grind various types of plastic waste prior to further processing. The equipment is used for recycling plastic bottles and packaging, films, large-diameter HDPE, LDPE, and PVC pipes, as well as plastic sheets, panels, profiles, ABS and polycarbonate (PC) products, nylon, and industrial or construction plastic waste.

  • Gwarancja, m.: 12

HQF Series Plastic Crusher is a high-performance industrial machine designed for efficient size reduction of various types of plastic waste and plastic products into a uniform particle size suitable for further recycling and processing. The equipment is widely used in recycling facilities, plastic manufacturing plants, and industrial waste treatment applications.

Advantages:

  • The reinforced steel housing, reliable drive system, and heavy-duty cutting knives ensure efficient processing of high-density and thick-walled plastic materials.

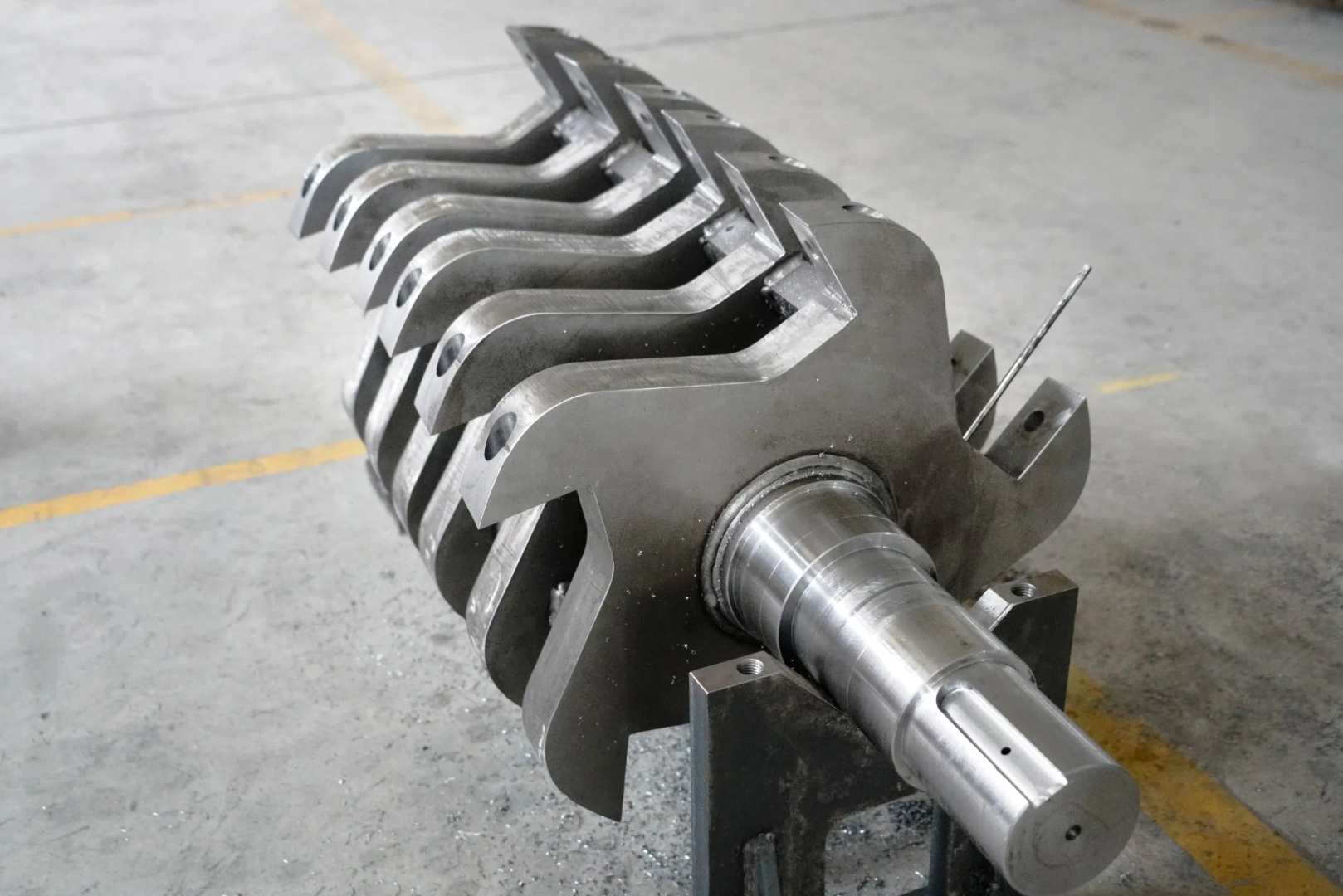

  • The optimized rotor geometry provides high processing speed for large volumes of raw material while maintaining a consistent output particle size.
  • The advanced cutting unit design reduces mechanical load, extends knife service life, and minimizes energy consumption.
  • Easy adjustment of operating parameters, convenient maintenance access, integrated safety systems, and low noise levels ensure comfortable and safe operation.

Processed Materials:

  • Plastic bottles, plastic containers, and packaging films.
  • Thick-walled HDPE, LDPE, and PVC pipes.
  • Plastic sheets, profiles, and panel materials.
  • Engineering plastics (ABS, polycarbonate, nylon).
  • Various industrial, construction, and municipal plastic waste.

MODEL\SPECHQF 1200/600HQF 1000/600HQF 800/600HQF 800/ 450HQF 600/ 450
Roto diameter (m)600600600450450
Roto width (mm)12001000800800600
Spindle speed (rpm)520520520580580
Displacement of fixed knife (pcs)22222
Dynamic knife displacement (pcs)3/53/53/533
Drive power (kW)75/9055/ 7545/553022
Power of hydraulic station (kW)1.51.51.5
Inlet size (mm)1200*9001000*900800*800800*700600*600

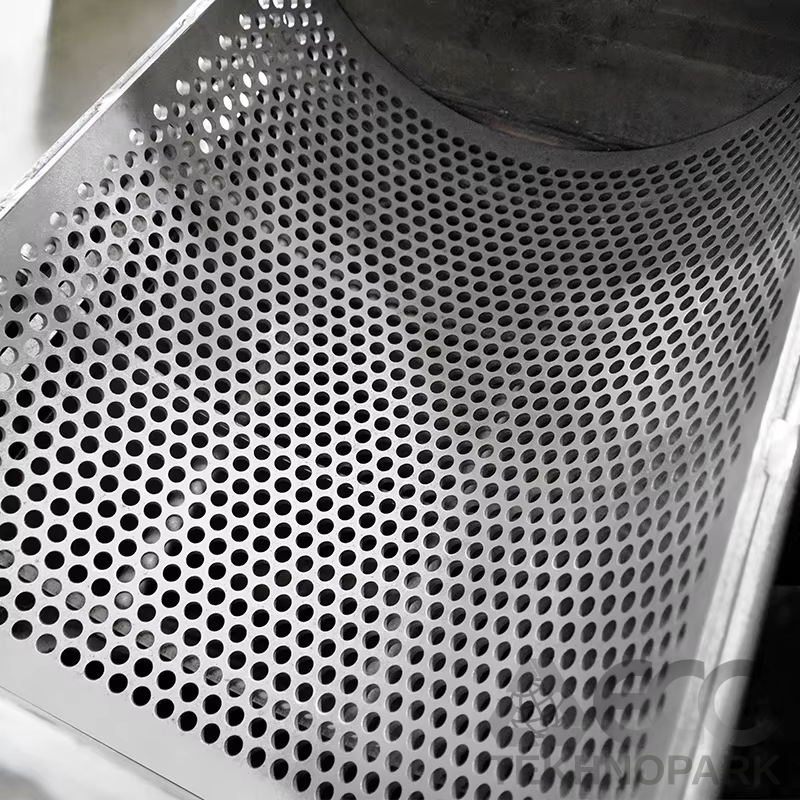

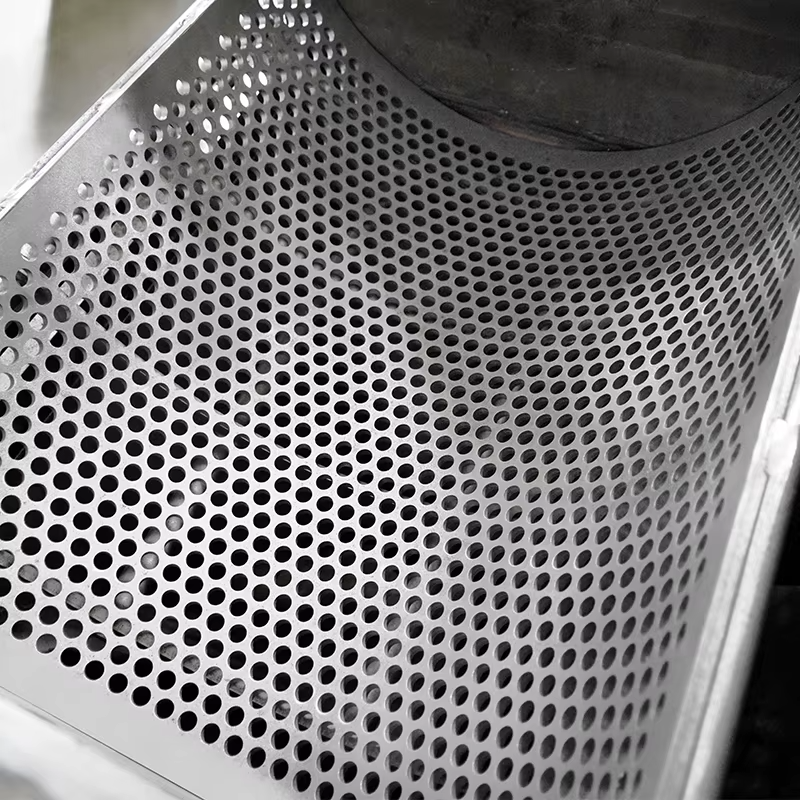

Sieve aperture (mm)>6>6>6>6>6
Overall dimension (m)2200*2200*30002200*1900*30002100*1650*30001700*1550*26001550*1200*2400
Weight of the whole machine (KG) 45004000320025001500

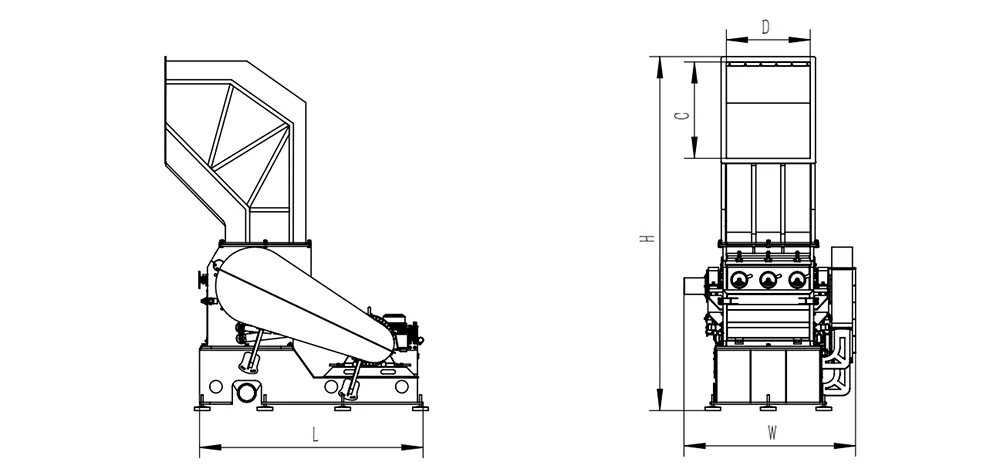

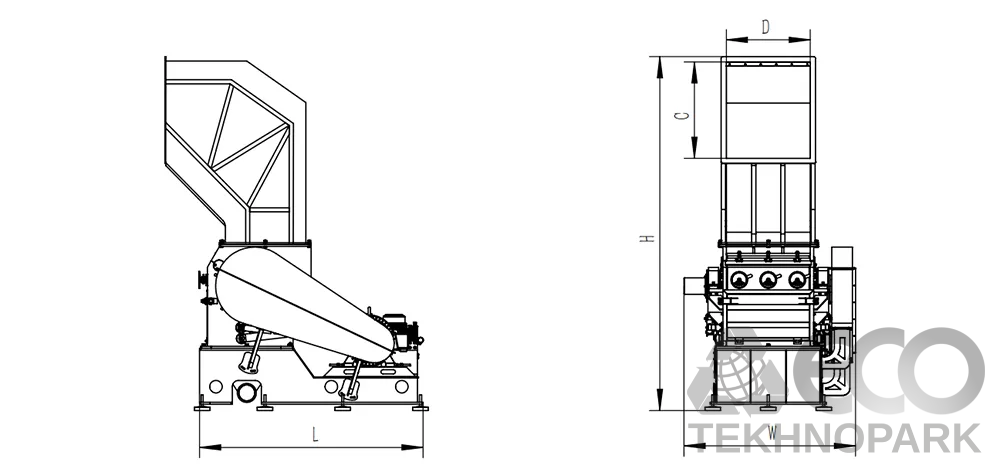

MODELHQF 600/ 450HQF 800/ 450HQF 800/ 600HQF1000/ 600HQF1200/ 600
L15501700210022002200
W12001550165019002200
H24002600300030003000
C60080080010001200
D600700800900900
