Shredder do tworzyw sztucznych HFS-F

Cena dostępna na zapytanie

Twój osobisty menedżer

Artur

Artur

Plastic Crusher HFS-F Series is designed using advanced engineering and structural solutions to ensure high productivity, reliability, operational safety, and ease of maintenance.

  • Gwarancja, m.: 12

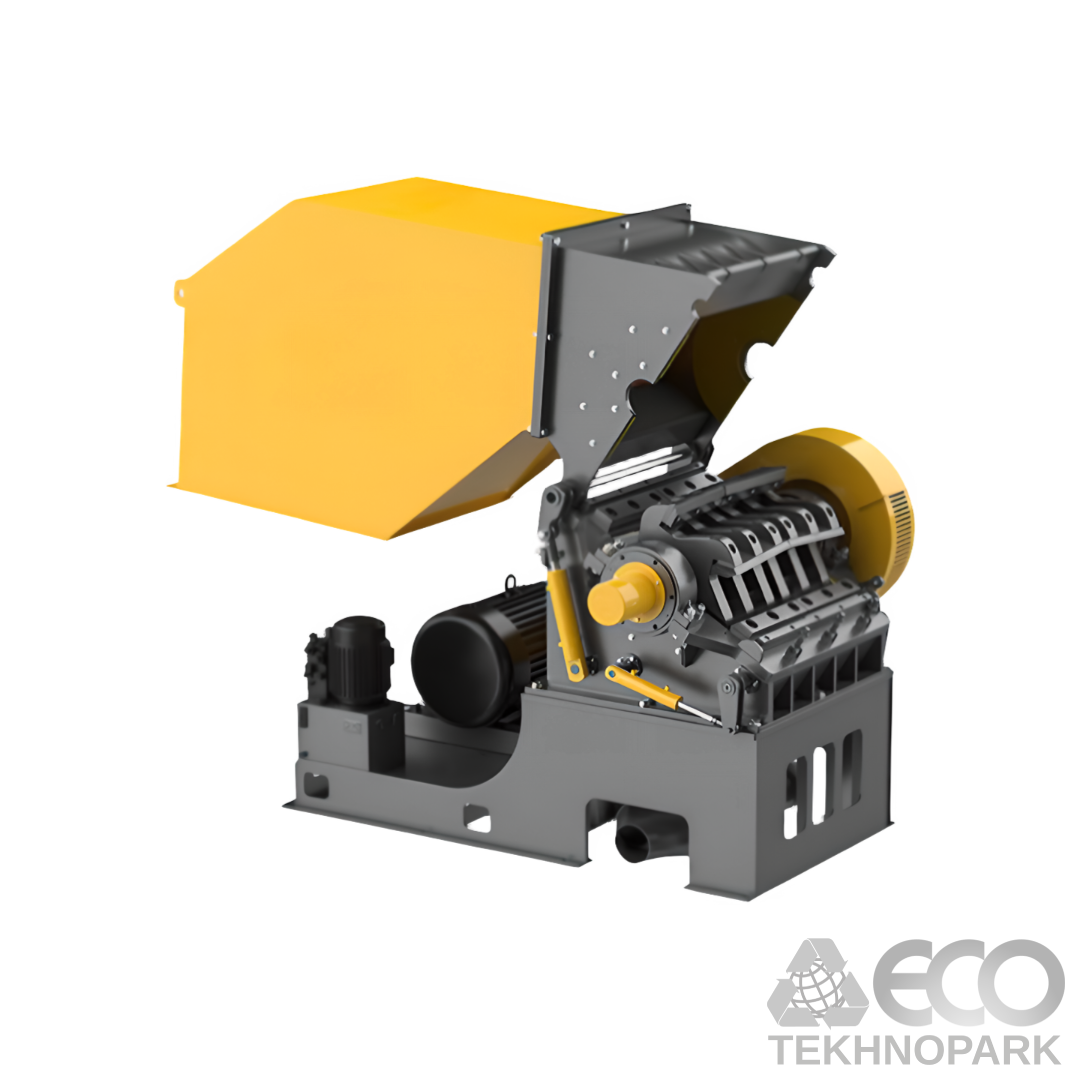

HFS-F Series Industrial Plastic Shredder is designed using advanced engineering solutions to ensure high productivity, reliability, and ease of operation. The equipment combines efficient performance, low operating costs, simple maintenance, and enhanced safety during operation.

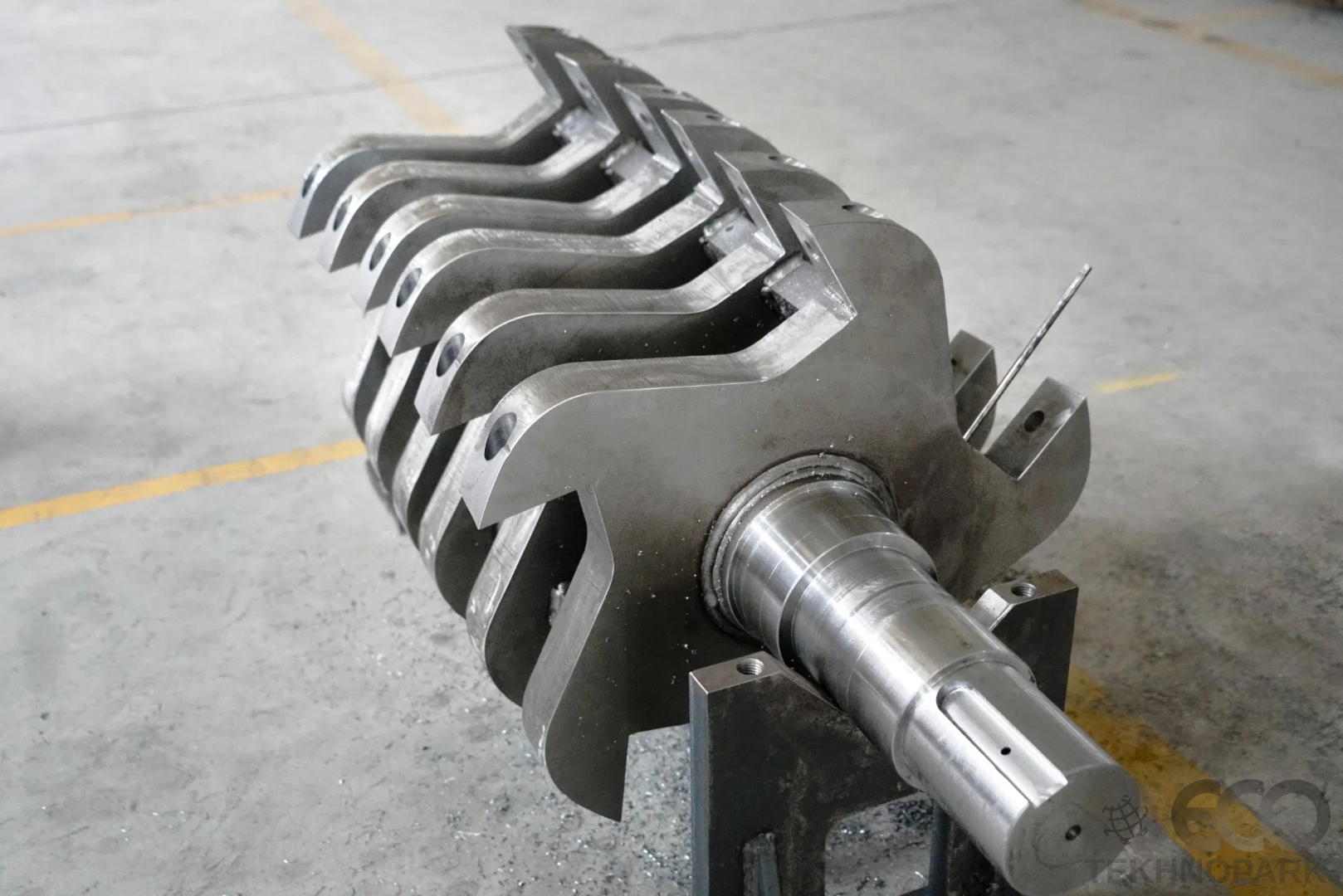

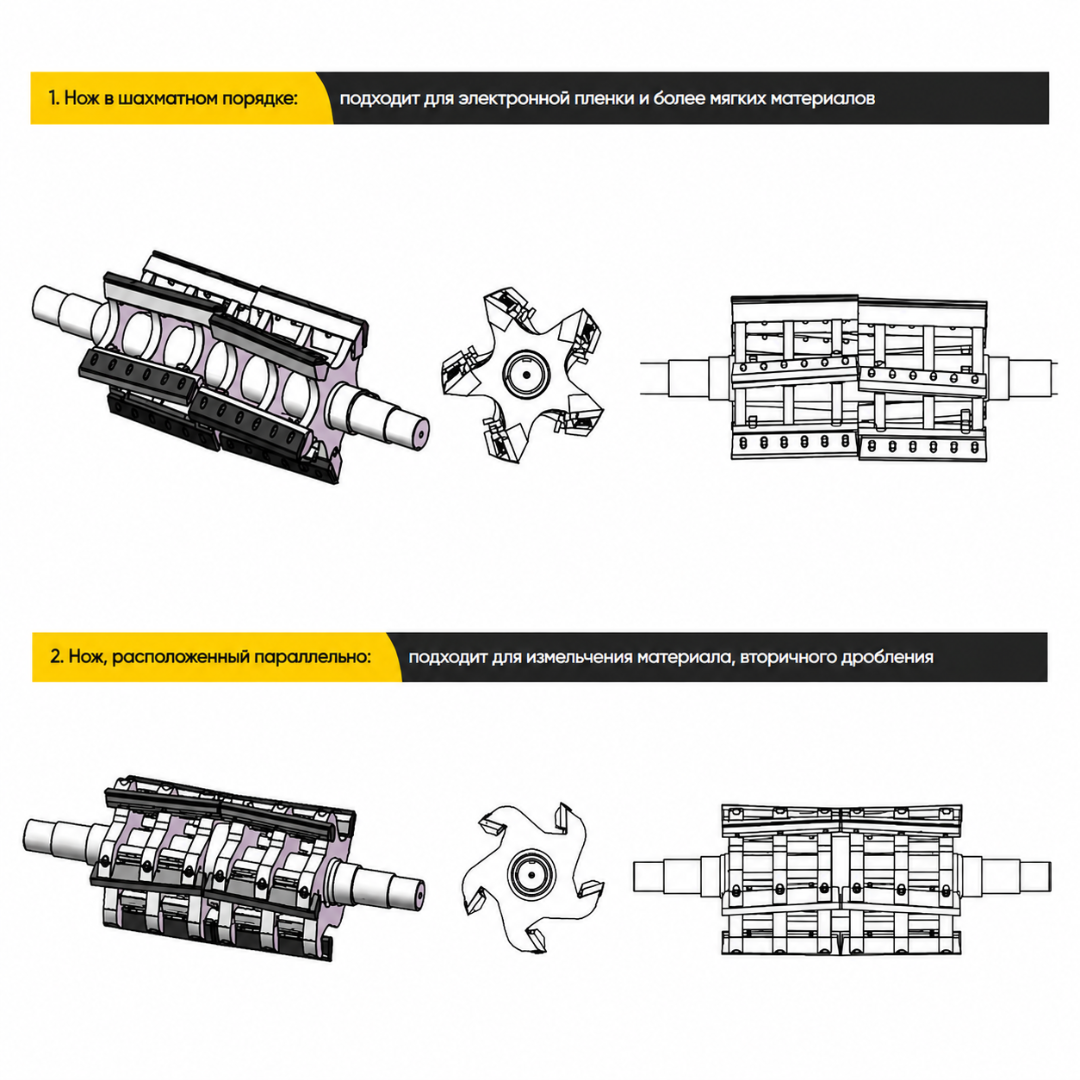

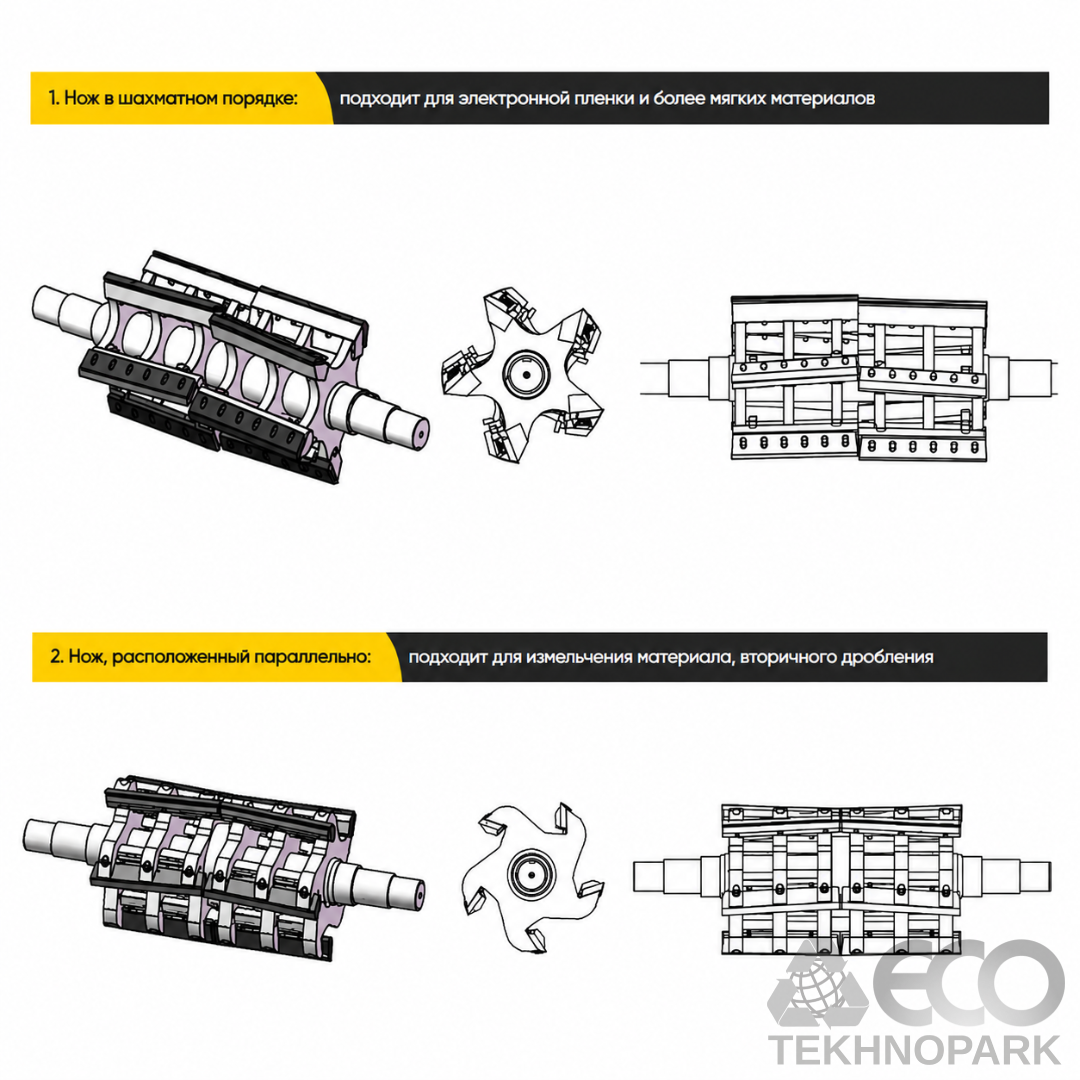

The robust welded body structure is manufactured from high-quality steel, providing excellent resistance to mechanical loads, deformation, and ensuring a long service life. The rotor features a V-shaped design, which enables uniform material feeding and efficient shredding. The drive system is equipped with a hardened gear reducer, delivering high torque at low rotational speeds and ensuring stable operation under heavy loads.

Processed materials:

  • Plastic film
  • Woven plastic bags
  • Industrial plastic waste
  • ABS plastic
  • PC plastic (polycarbonate)
  • Nylon
  • Plastic pipes
  • Plastic products and injection molding waste
  • Wood-plastic composite materials (WPC)

Parameter\ModelHFS-F600/450HFS-F800/600HFS-F1000/600HFS-F1200/600HFS-F1400/600
Blade diameter (mm)450600600600600
Blade thickness (mm)600800100012001400
Spindle speed (rpm)580520520520520
Number of fixed-knife sets (set)222/32/32/3
Number of cutting sets (set)33/55/75/75/7/9
Motor power (kW)305555/7575/90110/132
Hydraulic power (kW)1.51.52.22.23
Shipping dimensions (mm)600x580800x9301000x9301200x10001400x1000

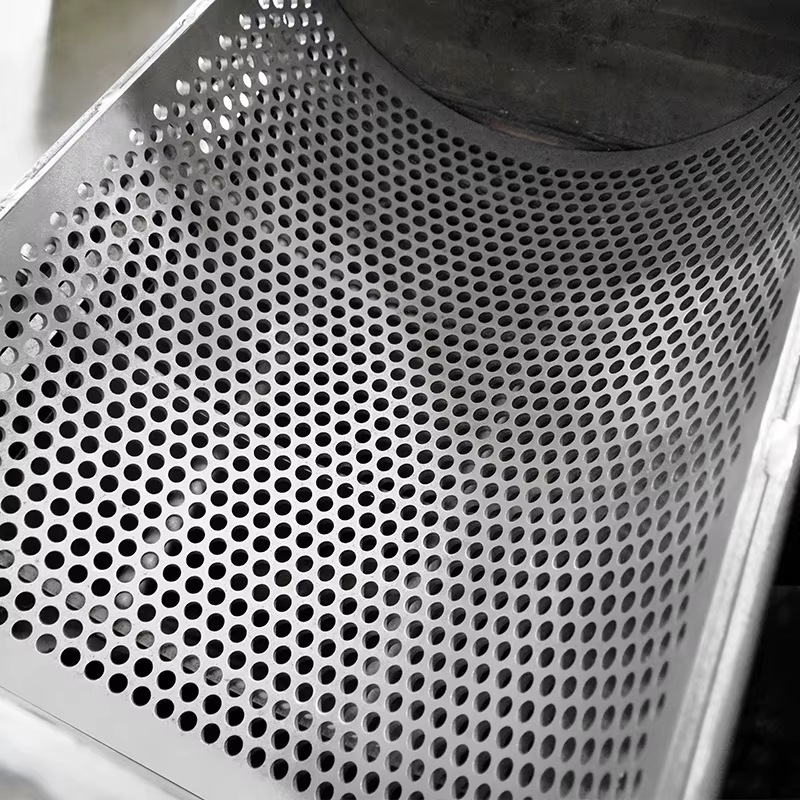

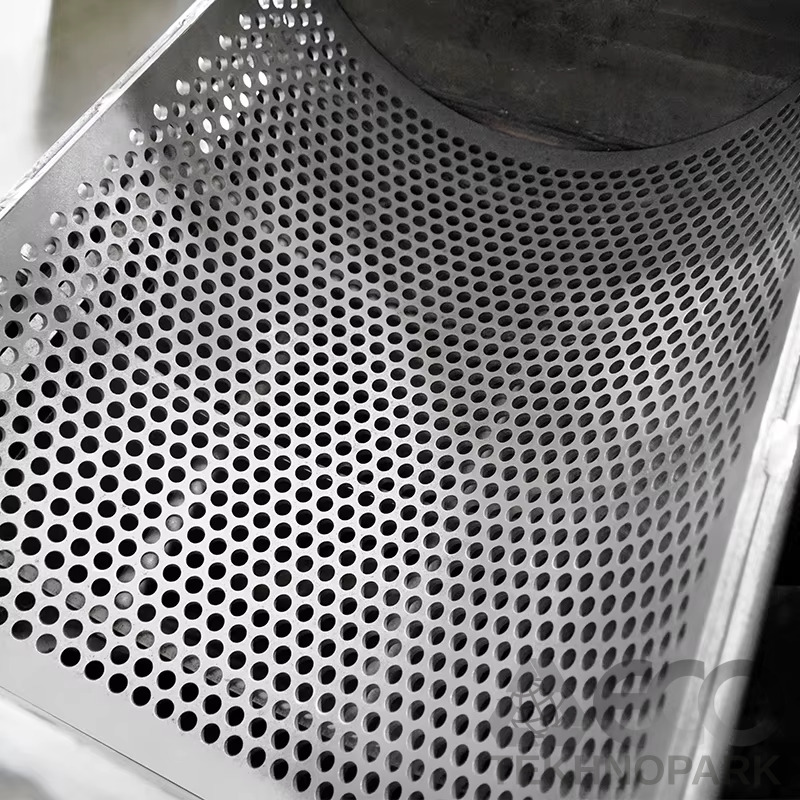

Screen mesh aperture (mm)> 6> 10> 10> 10> 10

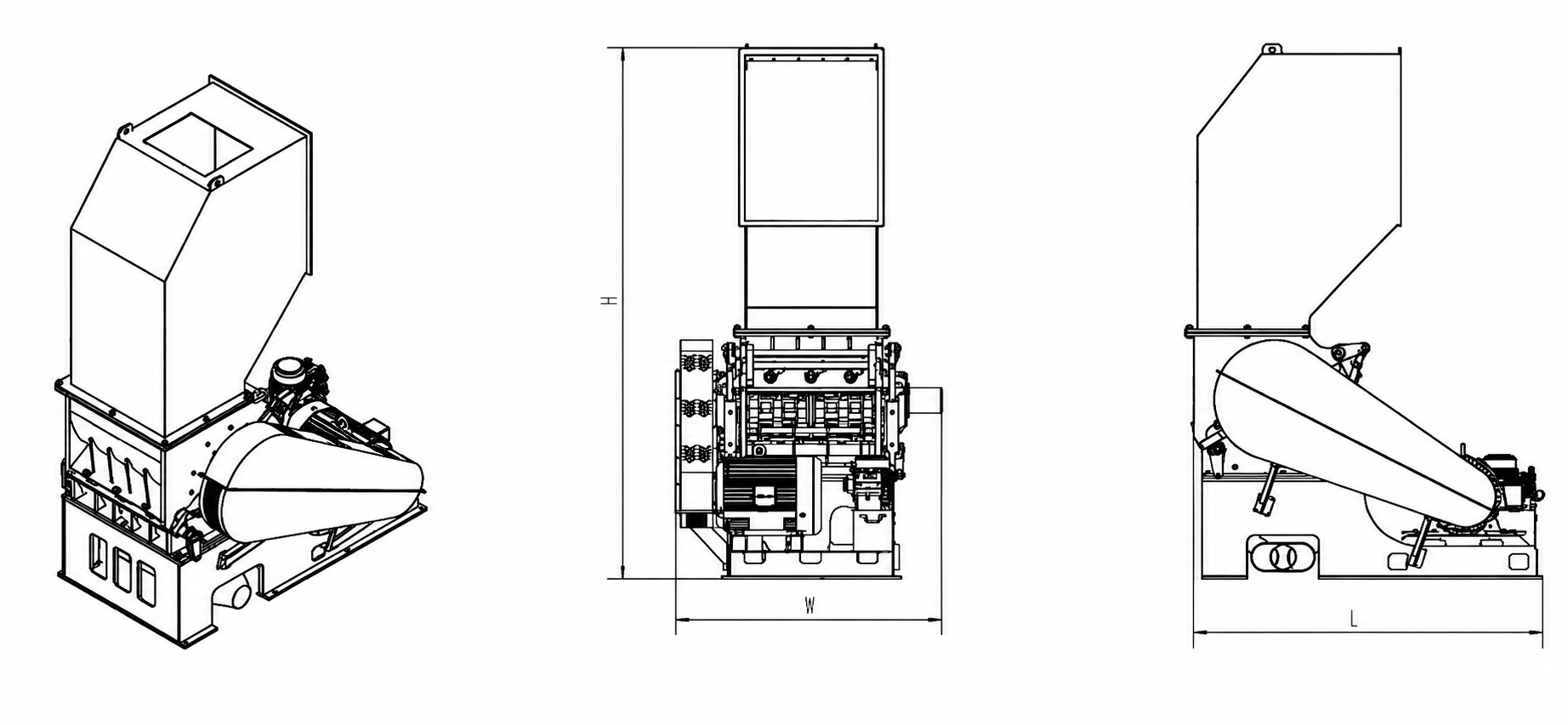

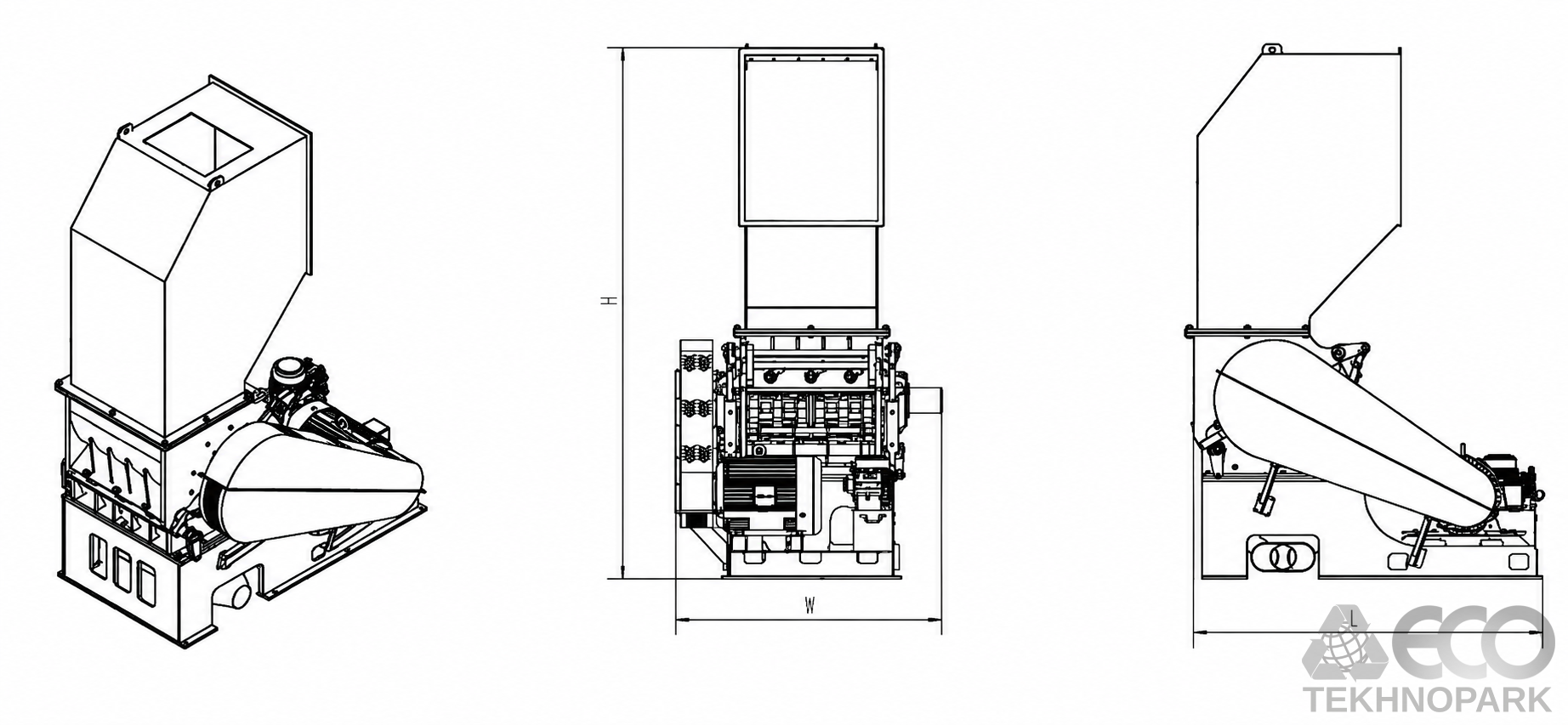

External dimensions (mm)1800x1250x22002200x1660x34202300x1860x34202300x2180x35202300x2400x3520
Overall machine weight (kg)3700430052008000
