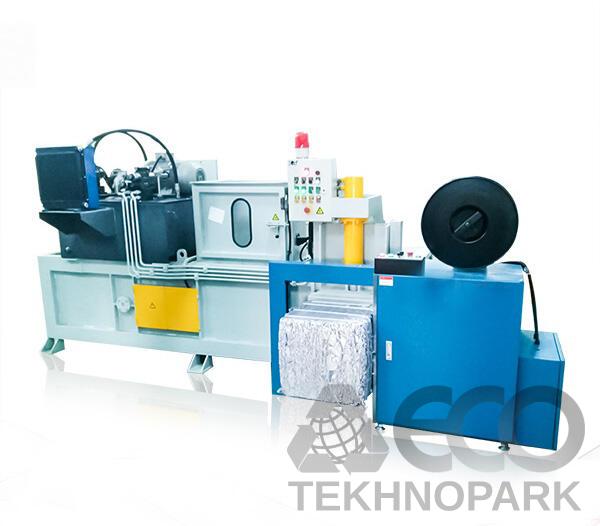

Automatic horizontal baler for recyclables

Automatic horizontal baler for recyclables миниатюра

Do you like our product?

Enquiry

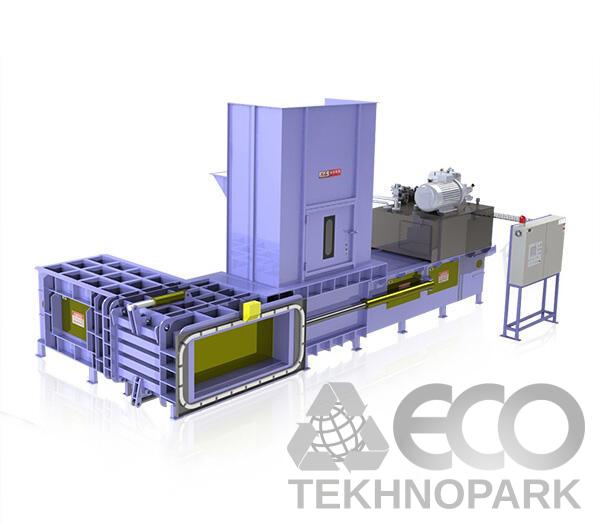

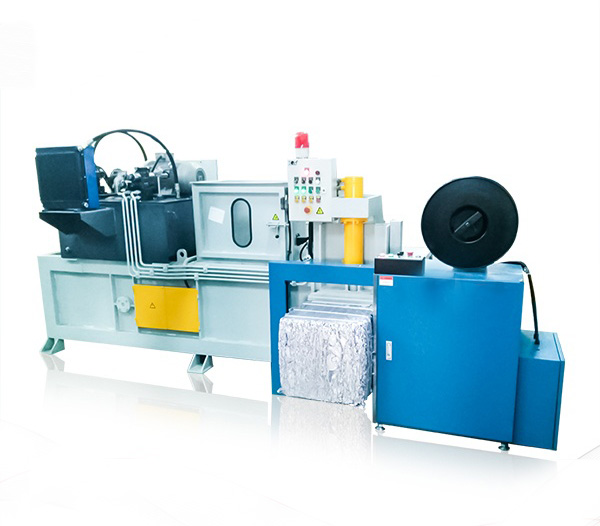

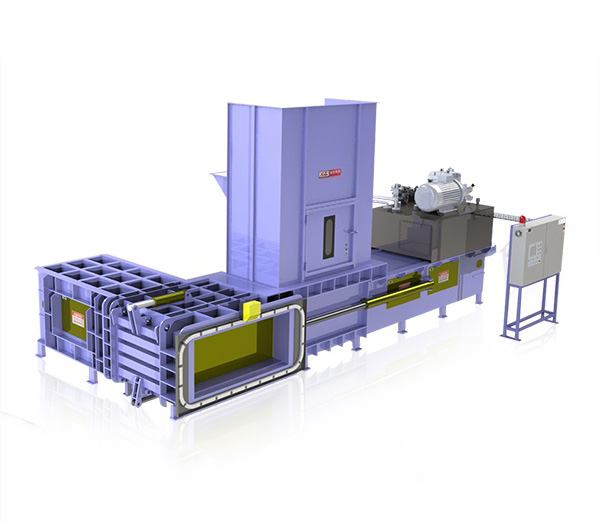

The XTR is a twin-cylinder horizontal baler for recyclable materials, offering baling forces from 20 to 250 tons.

Warranty, m.: 12

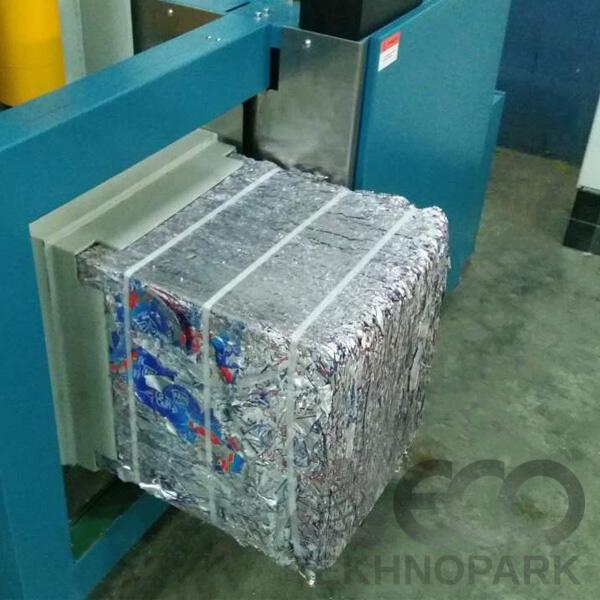

Automatic horizontal baler specialized in recycling and compressing the waste paper, plastic film, fabric etc, convenient for storage, saving labor cost.

Advantages:

Automatically compressing and baling. using PP strap to reduce baling material cost;
With two rams desing, compact machine structure occupying small space;

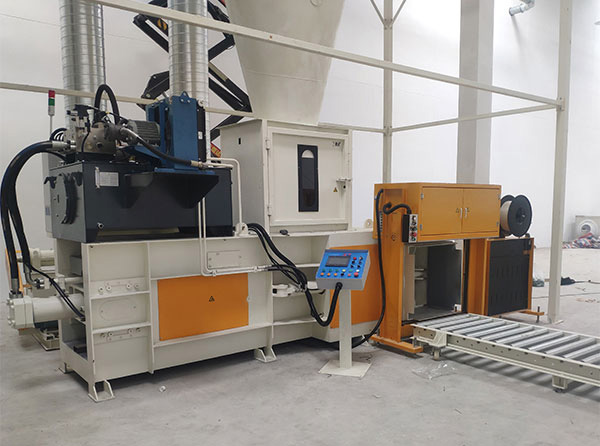

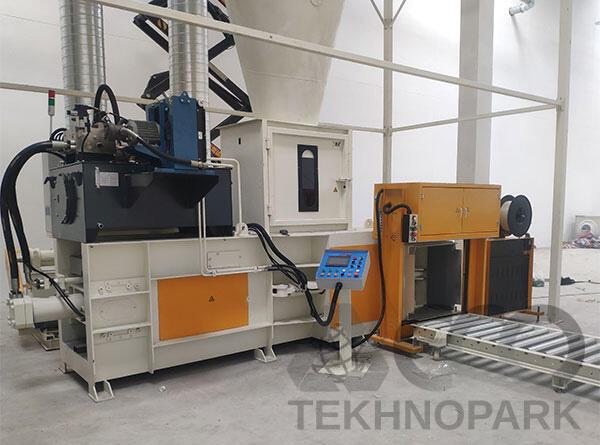

Cyclone system or conveyor could both be the optional for feeding;
With PLC control, number of belting is optional;
The bales could be directly burned out.

Model	XTR-200W5050P	XTR-400W7575P
Pressure	20tons	40tons
Motor Power	7,5kw	15kw
Oil Tank Volume	160L	540L
Feed Opening Size (L*H)	500х480mm	1100х730mm

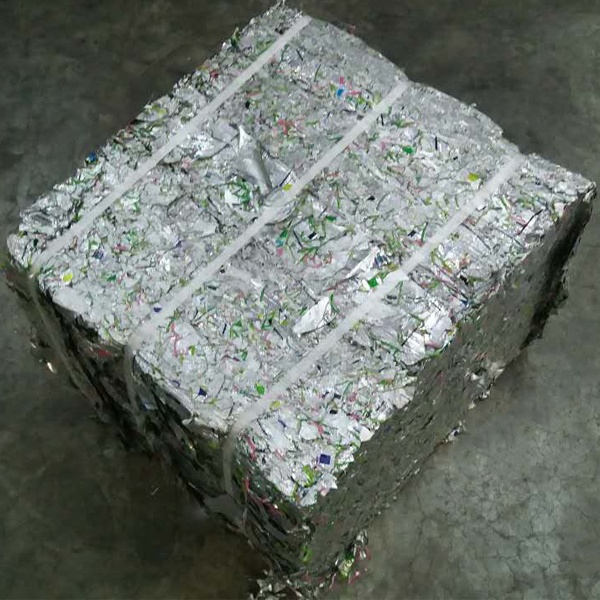

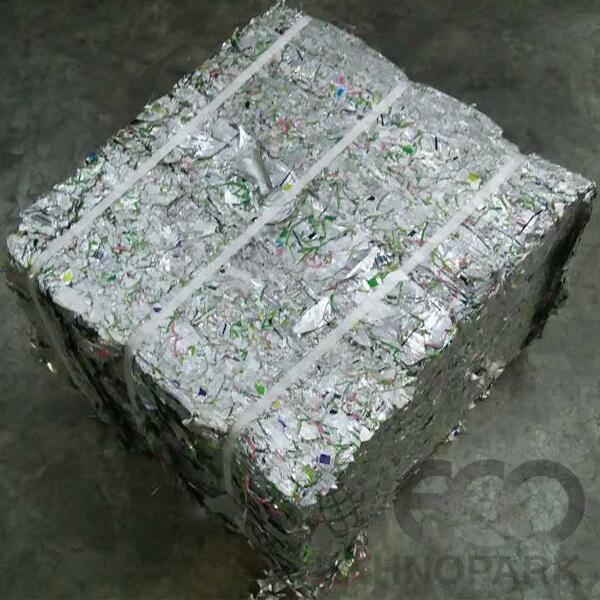

Bale Size (LWH)	500х500х500mm	750х750х750mm
Bale Weight	30-70kgs	70-150kgs
Number Of Belting	3lines	3-5lines
Machine Overall Dimension (LWH)	3212х2600х1630mm	4650х3010х2430mm
Machine Weight	2,5tons	4,5tons

Model	XTR-1250W11075-75	XTR-1250W15075-75	XTR-2000W11075-150	XTR-2000W15075-150	XTR-2500W15085-150
Pressure	125tons	125tons	200tons	200tons	250tons
Main Motor Power	55kw	55kw	55kw	55kw	55kw
Cooling System	air cooler/water cooler	air cooler/water cooler	air cooler/water cooler	air cooler/water cooler	air cooler/water cooler
Cycle time	18sec	18sec	10sec	12sec	20sec
Number of Belting	It is installed according to the requirements	It is installed according to the requirements	It is installed according to the requirements	It is installed according to the requirements	It is installed according to the requirements
Diameter of The Strapping Wire	2,7/3,0mm	2,7/3,0mm	2,7/3,0mm	2,7/3,0mm	2,7/3,0mm
Feed Opening Size (L*W)	1780х1026mm	2100х1420mm	1780х1026mm	2100х1420mm	2100х1420mm
Bale Size (LWH, L can be adjus table))	1100х750х(1105-1350)mm	1500х750х(900-1100)mm	1100х750х(1150-1350)mm	1500х750х(900-1100)mm	1500х850х(900-1100)mm
Bale Density (OCC)	450-550kw	450-550kw	500-600kw	500-600kw	550-700kw
Throughput	8-12tons/h	13-17tons/h	15-20tons/h	17-22tons/h	18-25tons/h
Machine Weight	21tons	25tons	30tons	32tons	37tons
Machine Overall Dimension	10900х4000х3530mm	11300х4500х3530mm	10900х4000х3530mm	11300х4500х3530mm	11300х4000х4030mm
Feeding device	The iron conveyor	The iron conveyor	The iron conveyor	The iron conveyor	The iron conveyor
Feed width	1600mm	2000mm	1600mm	2000mm	2000mm
Feed rate	12m/min	0-12m/min	12m/min	0-12m/min	0-12m/min
Power	7,5kw	11kw	7,5kw	11kw	11kw
Overall Dimension	12000х2100х5300mm	16000х2400х6200mm	12000х2100х5300mm	16000х2400х6200mm	16000х2400х6200mm
