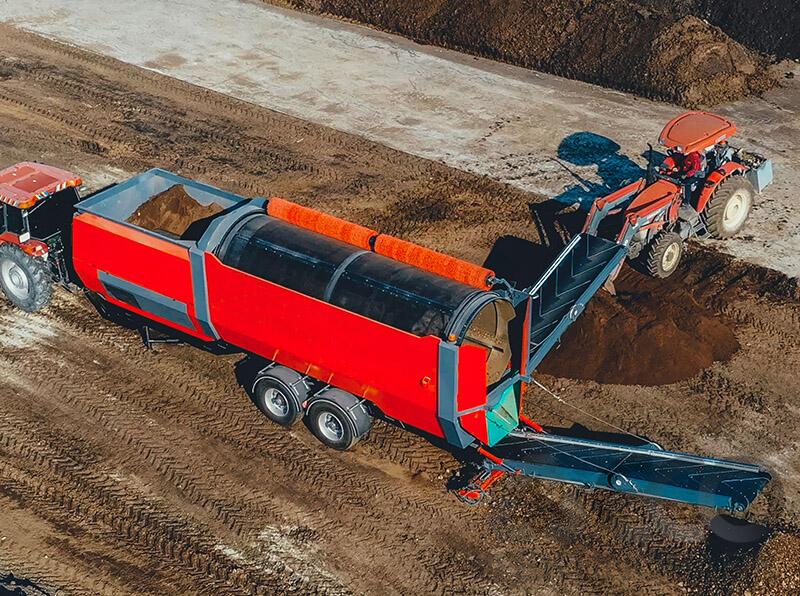

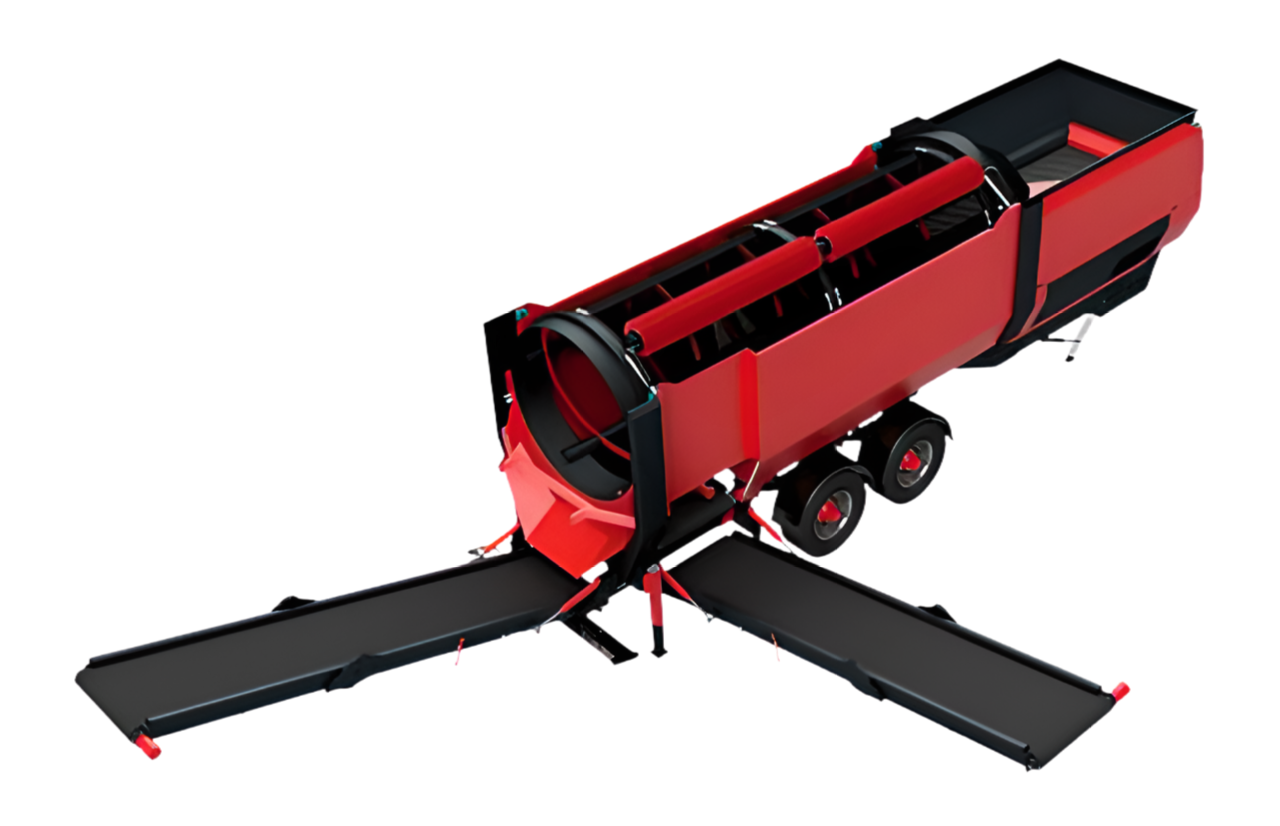

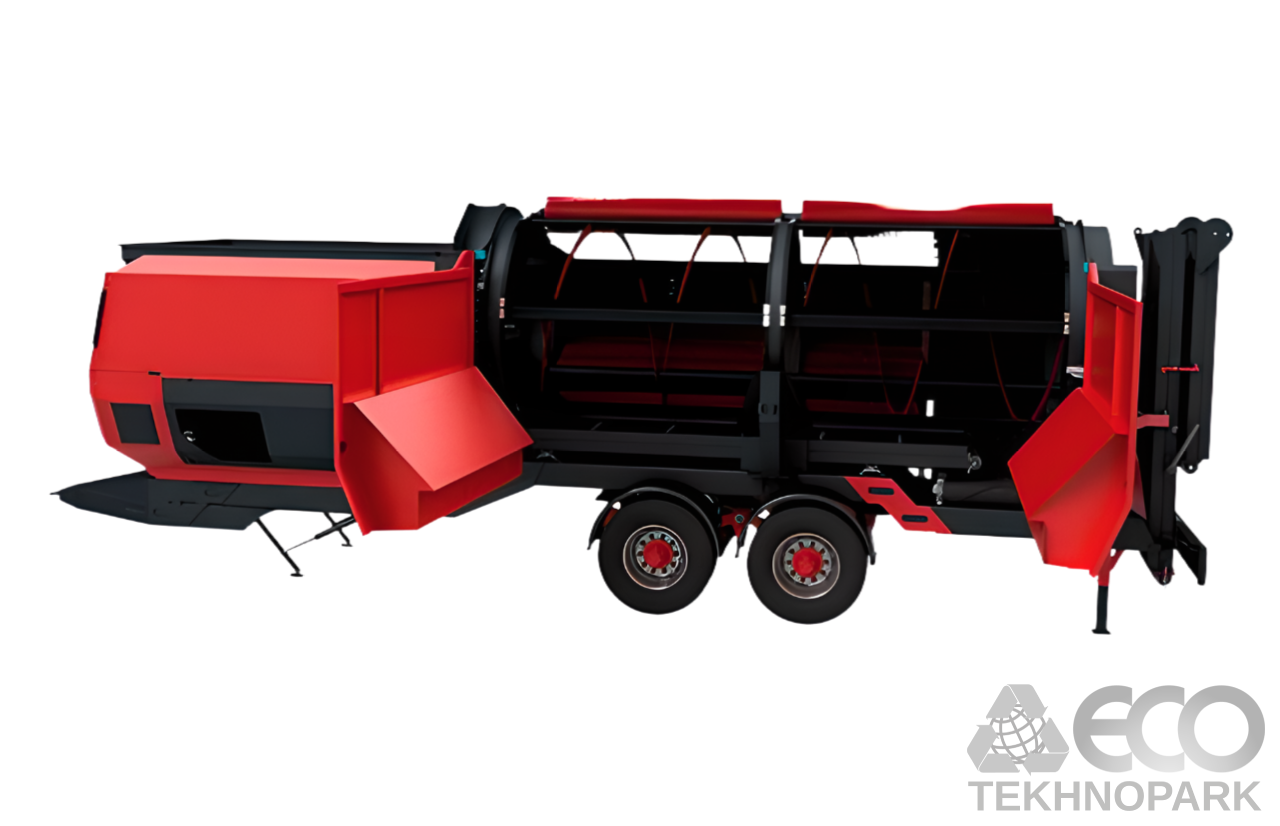

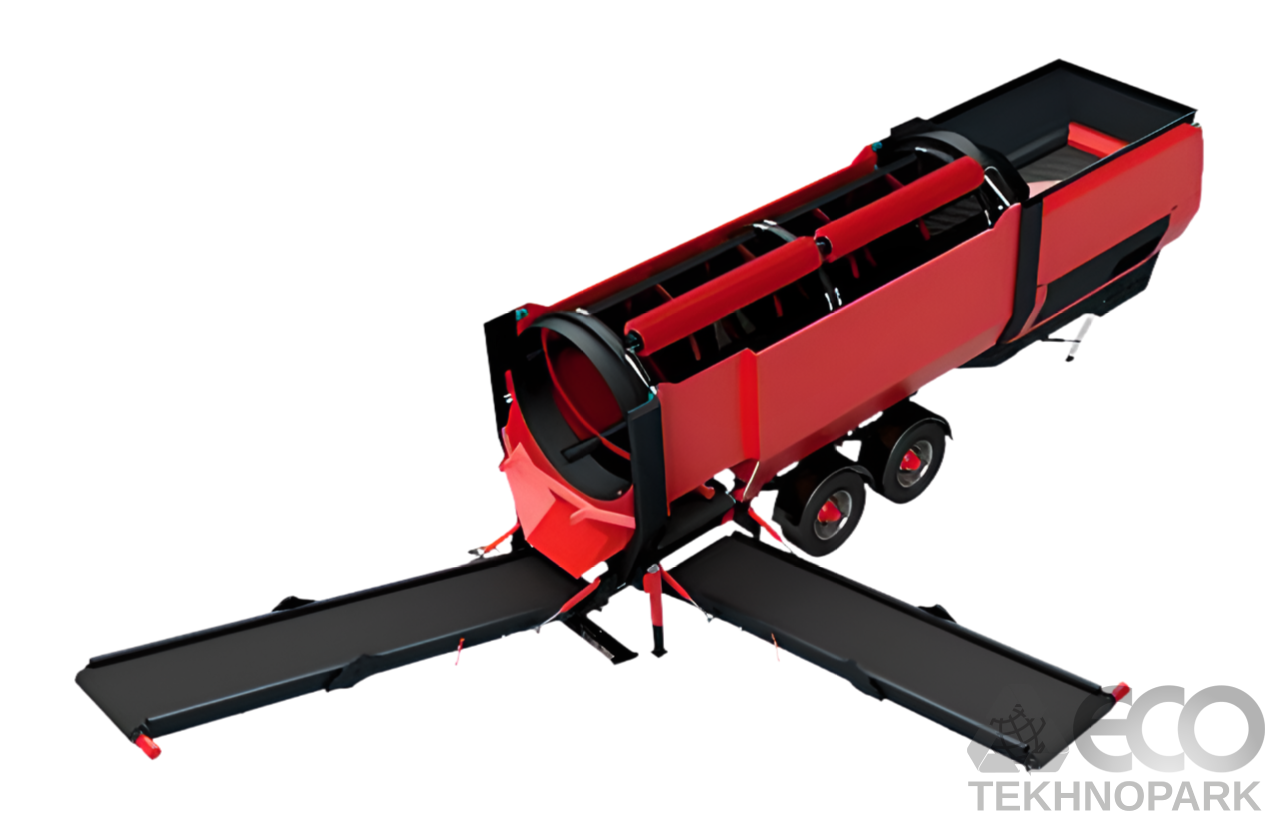

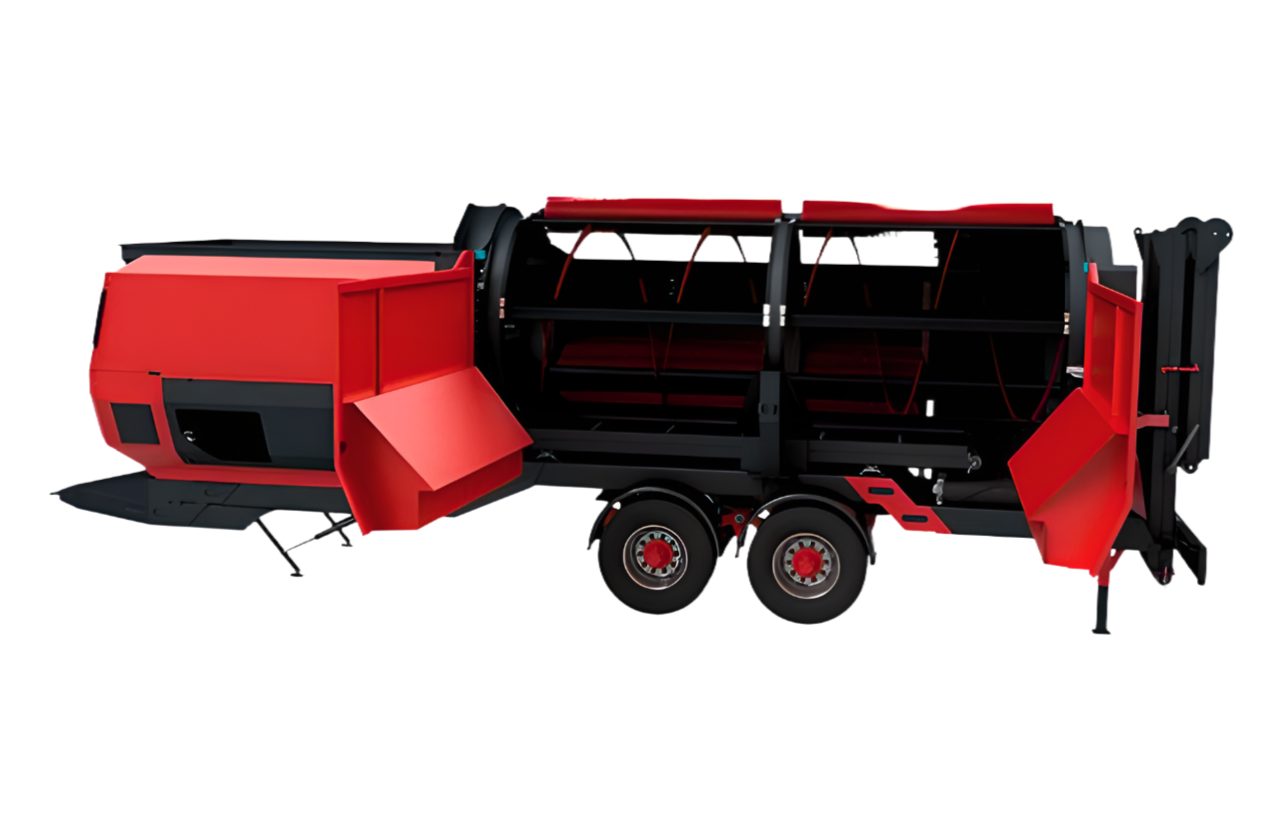

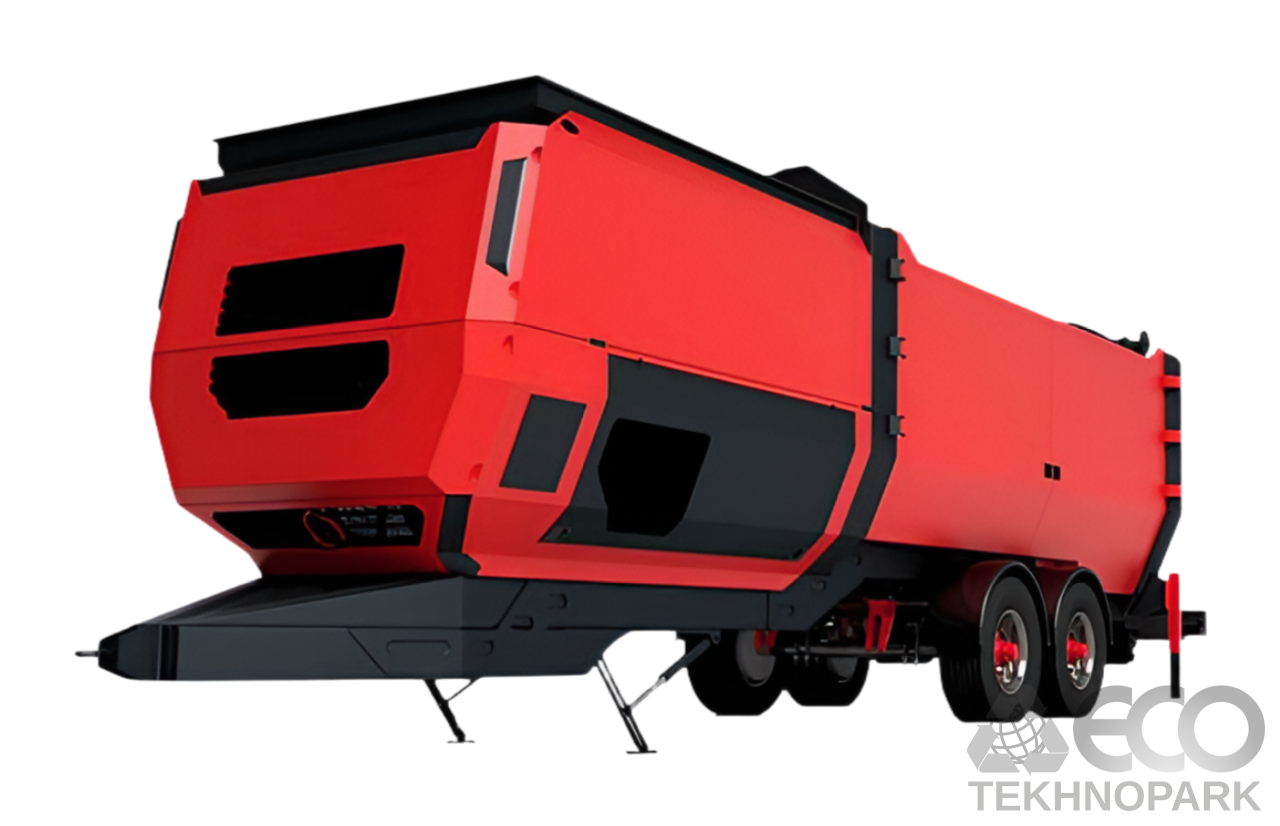

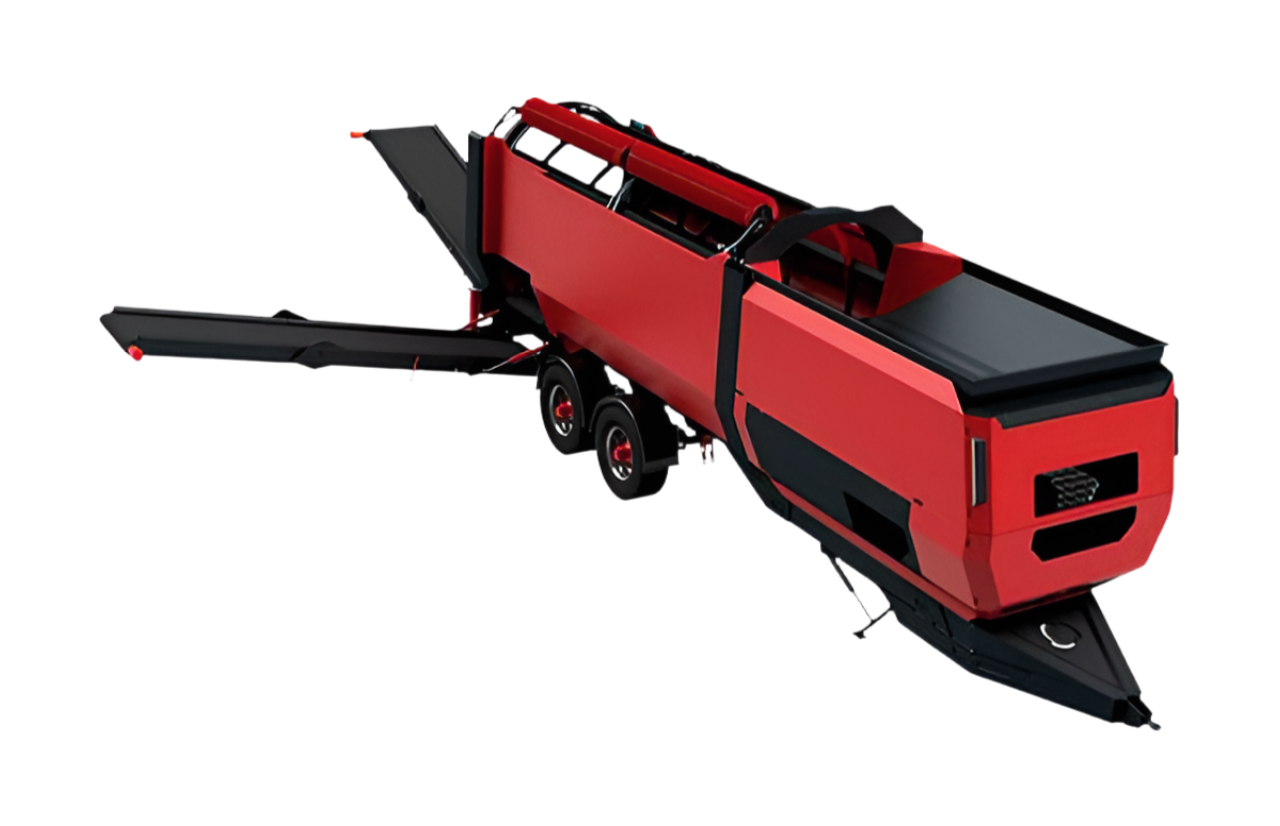

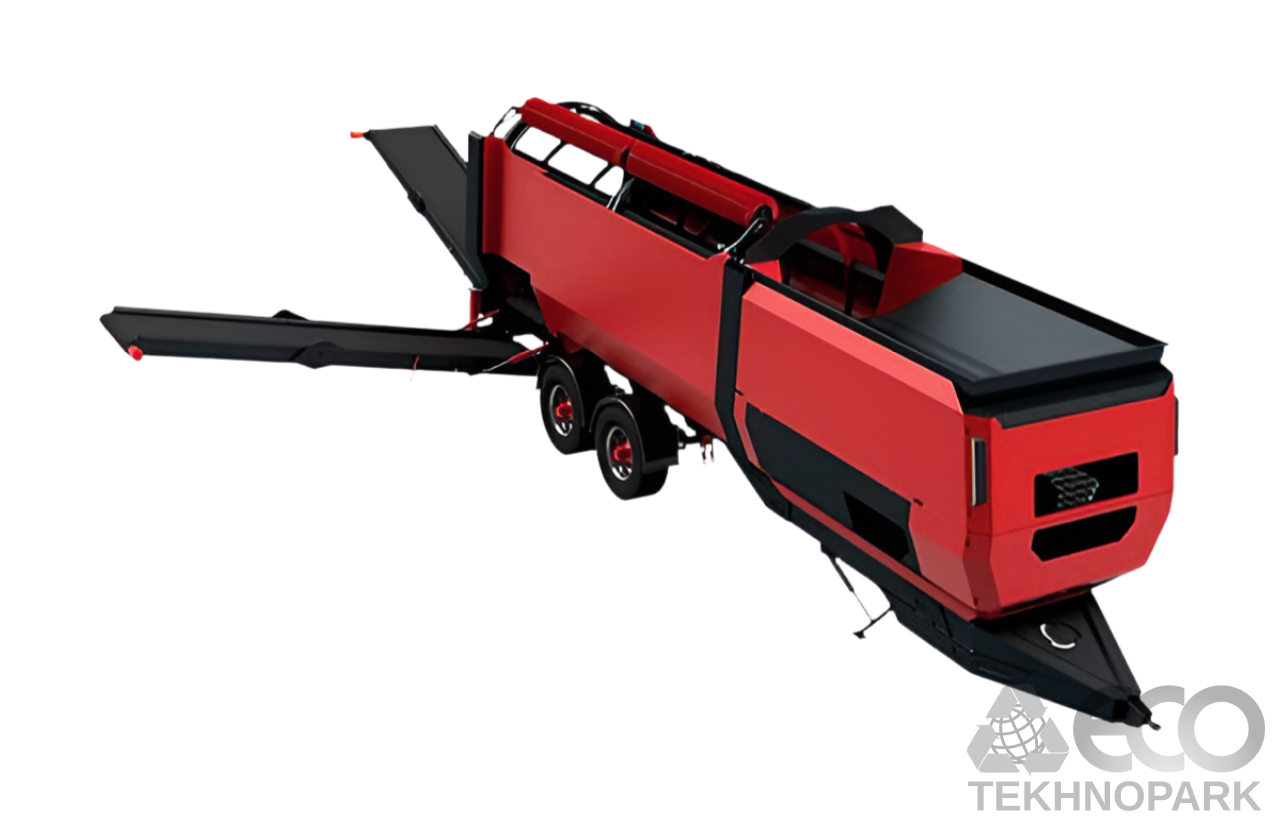

Mobile Trommel Screen / Separator MTS for screening and separating various waste fractions. The MTS can be used in any recycling plant for primary sorting as well as final calibration.
Due to its robust construction and long drum screen service life, the separator is suitable for a wide range of materials: soil, compost, biomass, etc.
Mobile trommel screens are the right choice even for the most demanding sorting operations thanks to removable screens for different material sizes.
Equipment Parameters:
- Drive System: Diesel engine
- Integrated Folding Conveyors
- Easily Replaceable Top Cleaning Brushes
- Option to Select Screens with Different Mesh Diameters for Various Materials
| Model | EYS-6 | EYS-5 |
|---|
| Diesel Fuel | Deutz TCD 2.9 L4 | Deutz TCD 2.9 L4 |
| Power | 55kW/75HP | 55kW/75HP |
| Engine emission class | Tier 4 Final/Stage V | Tier 4 Final/Stage V |
| Hopper Volume (m³) | ~ 6 | ~ 5 |
| Feeding Length (mm) | 3780 | 3475 |
| Feeding Width (mm) | 1990 | 1990 |
| Feed Height (mm) | 2800 | 2785 |
| Drum Diameter (mm) | 2000 | 1800 |
| Drum Length (mm) | 5500 | 4700 |
| Effective screening surface (m²) | ~30,2 | ~22,5 |
| Drum speed (rpm) | 0-23 | 0-26 |
| Perforation circular or square (mm) *Custom | from 10 to 80 | from 10 to 80 |
| Discharge Belt undersize Material L x W (mm) | ~ 5500 x 1000 | ~ 5400 x 800 |
| Discharge Belt oversized Material L x W (mm) | ~ 5000 x 1000 | ~ 5185 x 800 |
| Weight (t) | ~ 19 | ~ 17 |
| Dependent on Material (m³/h) | up to 180 | up to 120 |
