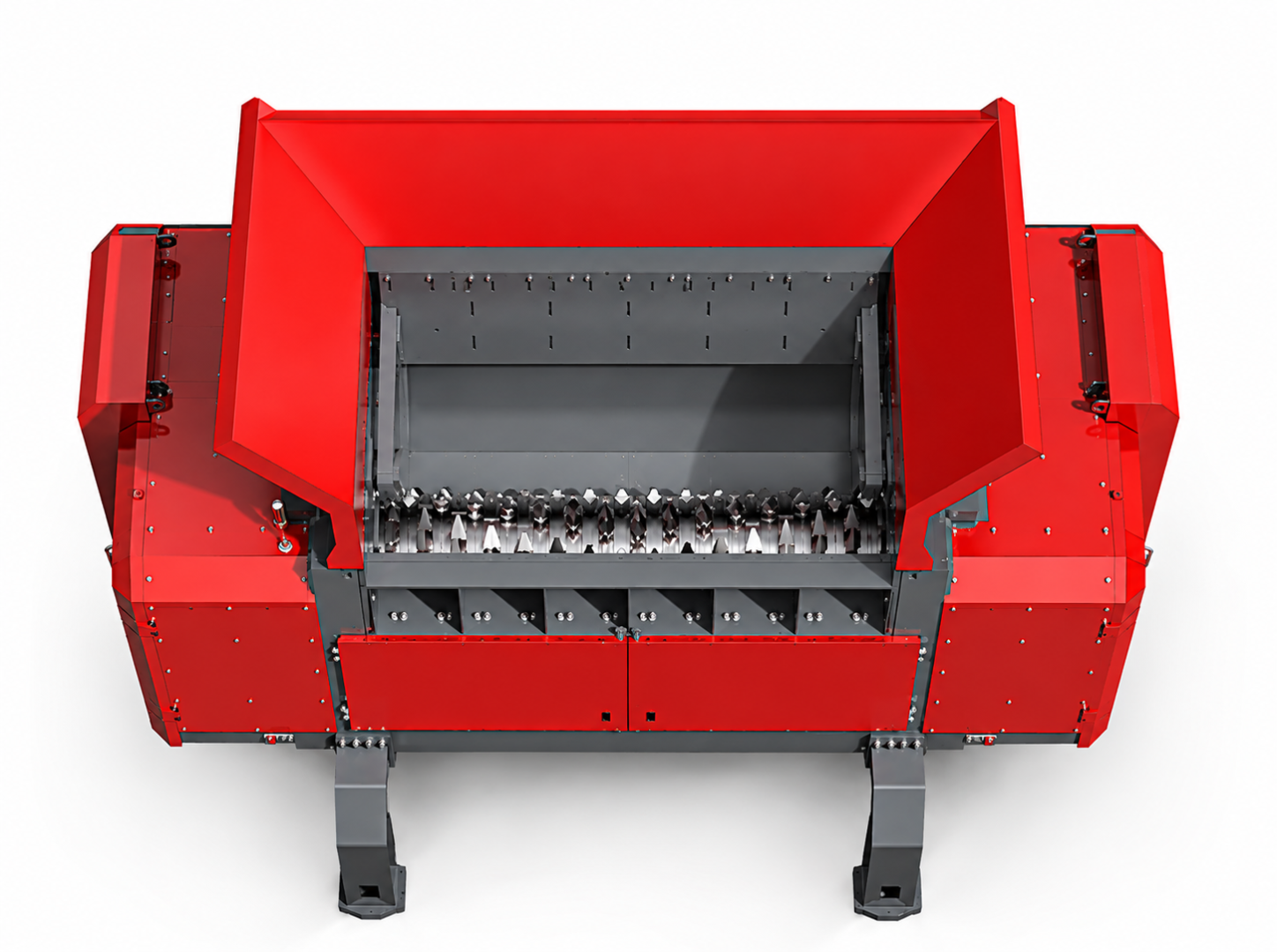

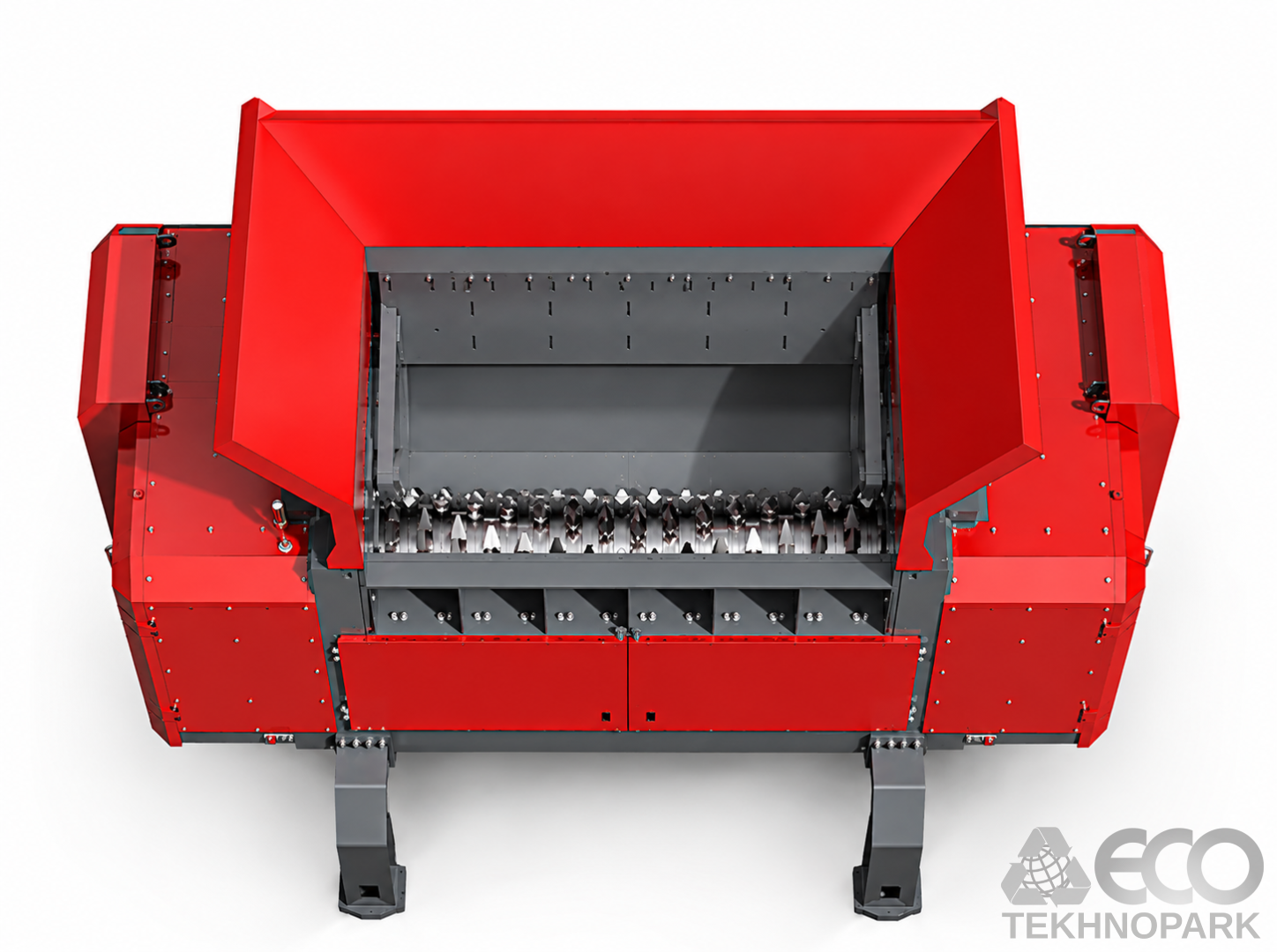

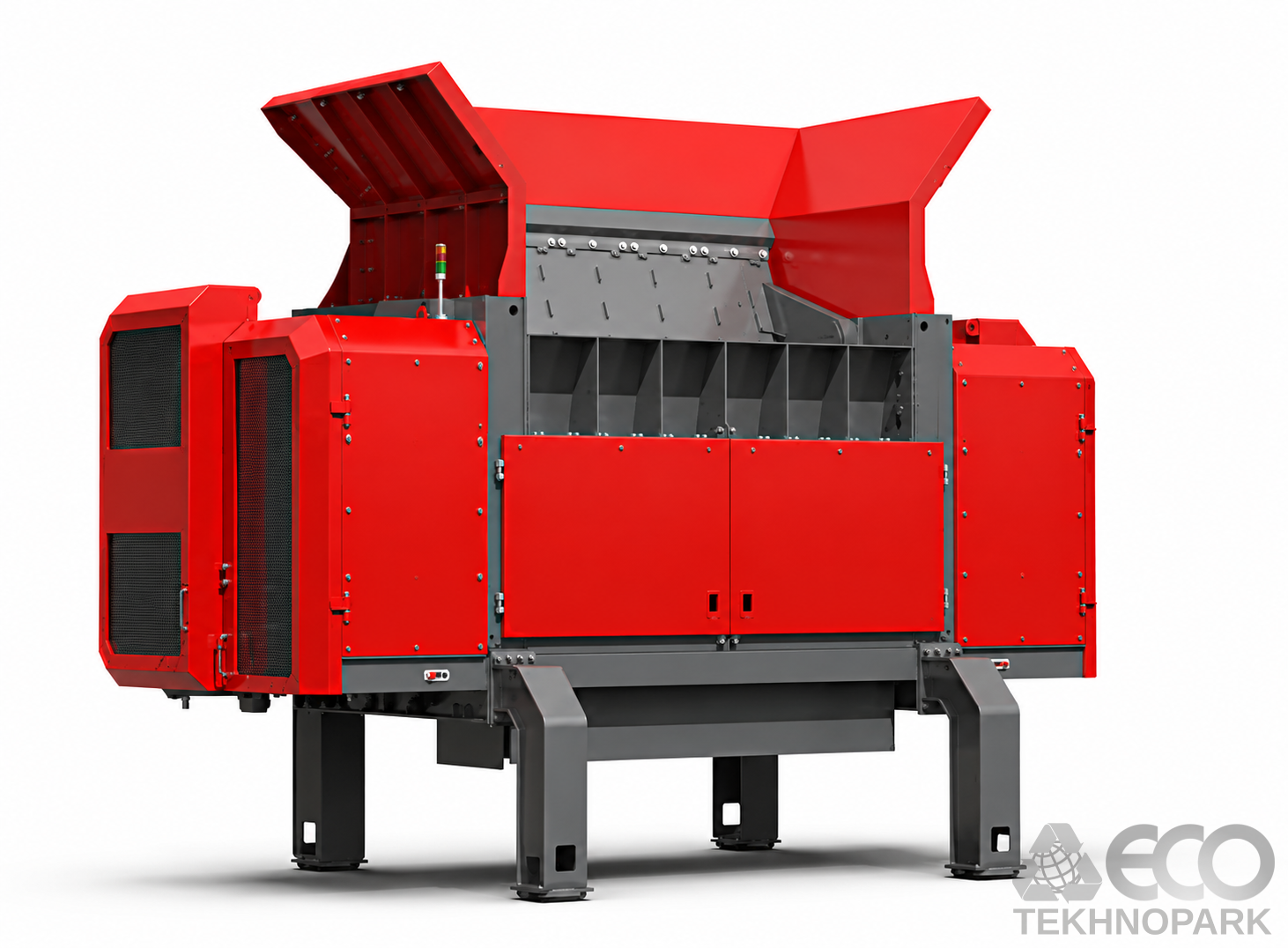

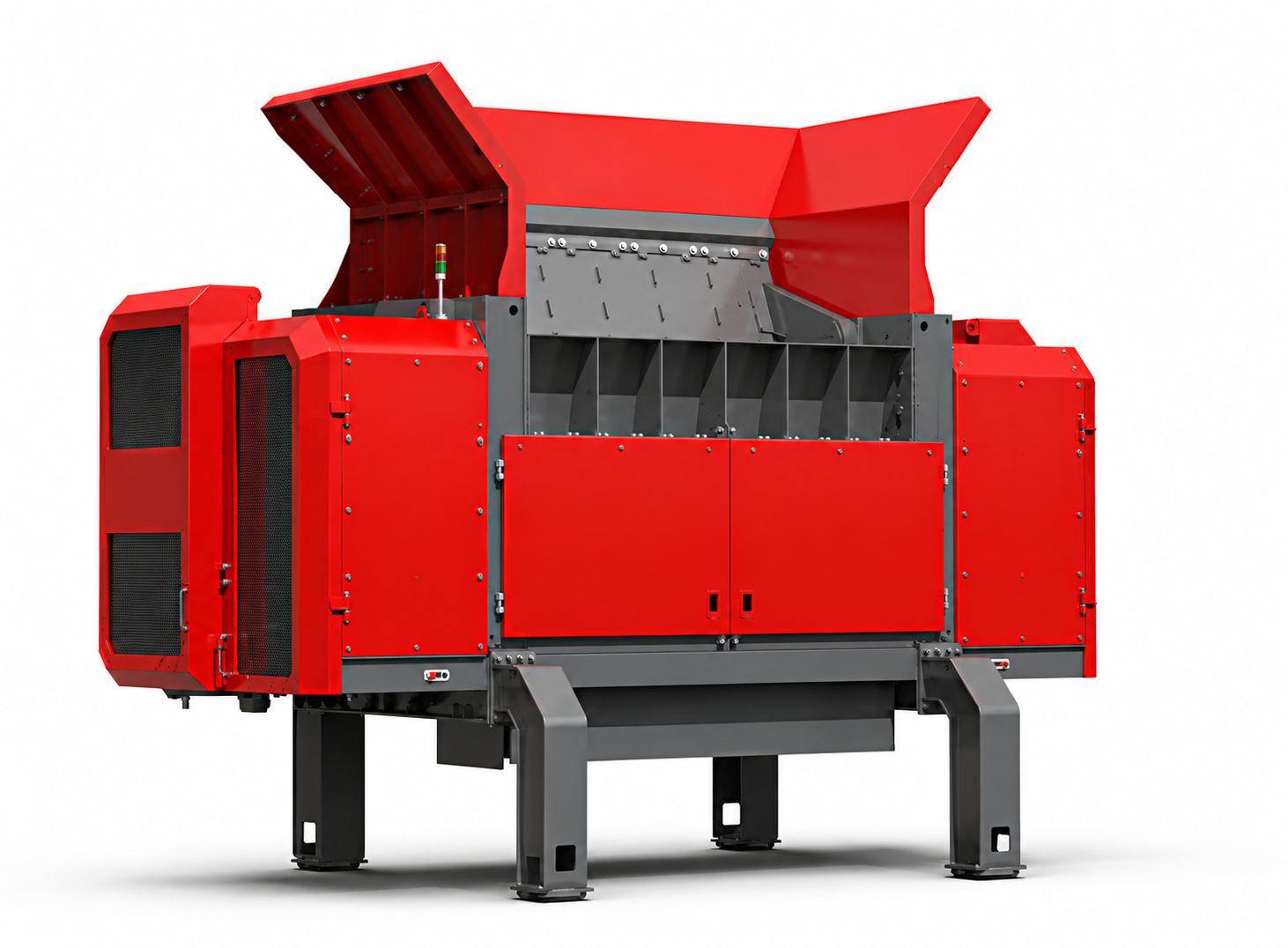

The SG3000MP is an integrated shredder engineered for processing various types of solid waste under complex operating conditions.
The shredder is designed with a heavy-duty structure, high-torque performance, and an advanced cutting mechanism, enabling finer, more consistent particle size and increased throughput. These features contribute to improved shredding efficiency and enhanced operational stability.

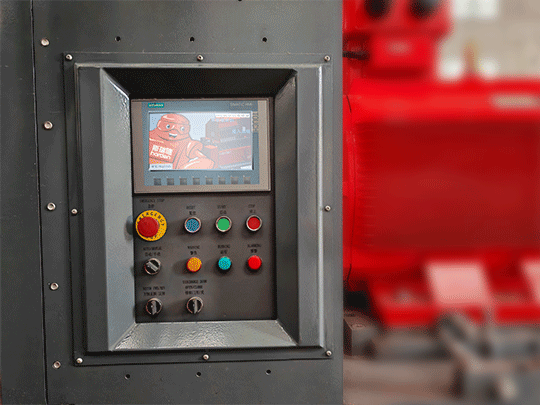

The machine is equipped with an intelligent control platform that integrates temperature monitoring, automatic lubrication, digital frequency adjustment, and other advanced functions. This ensures efficient, user-friendly, and intelligent operation. The on-site control system allows operators to start and stop the equipment with a single touch via the control panel.
The cutting clearance can be adjusted quickly and conveniently without opening the discharge door. Adjustment is performed through dedicated bolt positions, reducing maintenance time and improving operating efficiency.

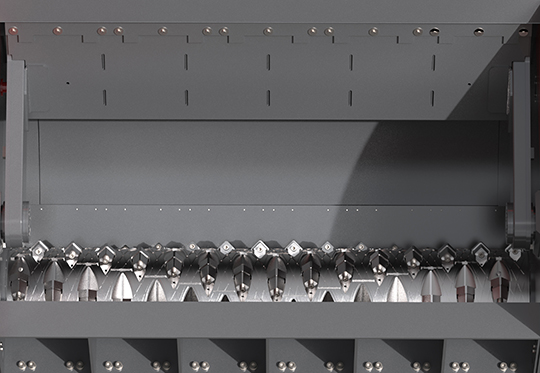

The cutting unit incorporates a high-precision spindle arrangement. All wear surfaces exposed to the shredding process are manufactured from high-strength, wear-resistant alloy steel, allowing the machine to process a wide range of material types effectively.

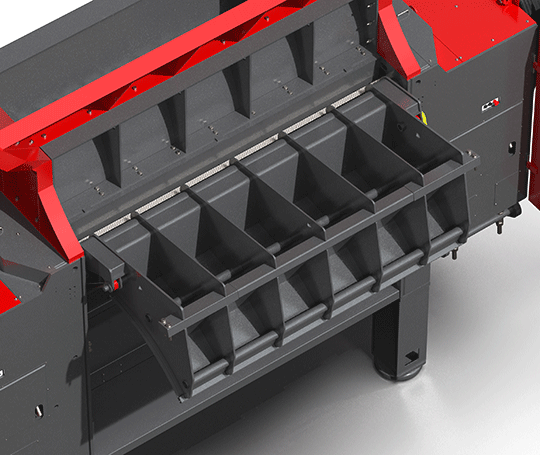

An open-type discharge door combined with a one-touch hydraulic operating system enables fast removal of foreign objects and minimizes downtime, allowing production to resume quickly.

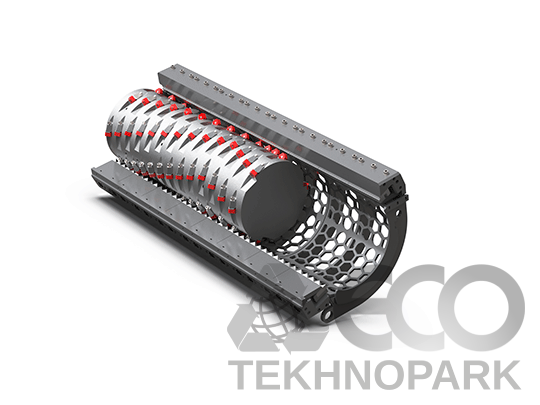

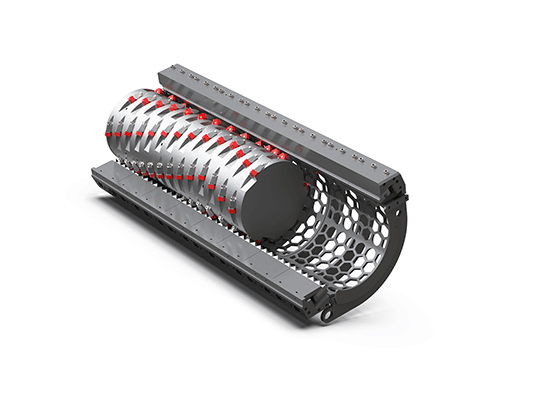

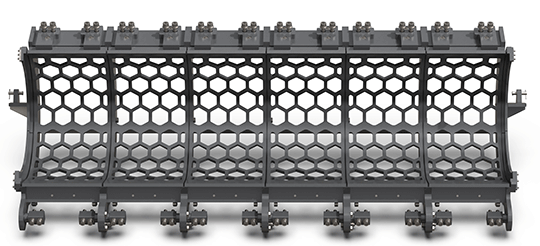

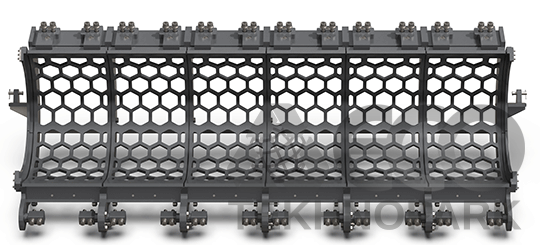

Different screen mesh configurations can be selected to achieve the desired output particle size. The enlarged discharge area improves material flow, while highly wear-resistant alloy steel screens provide long service life. The modular screen design simplifies replacement procedures and increases overall efficiency in waste processing operations.

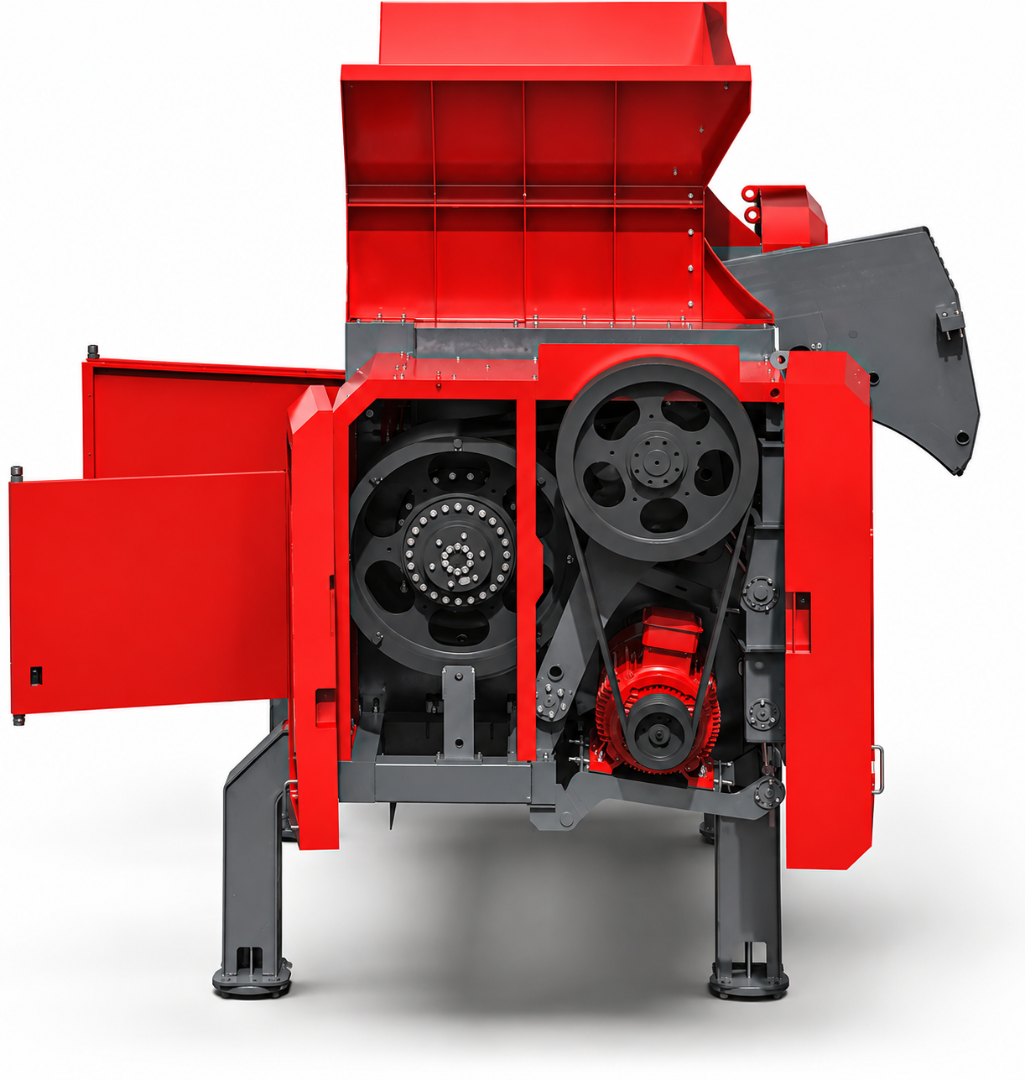

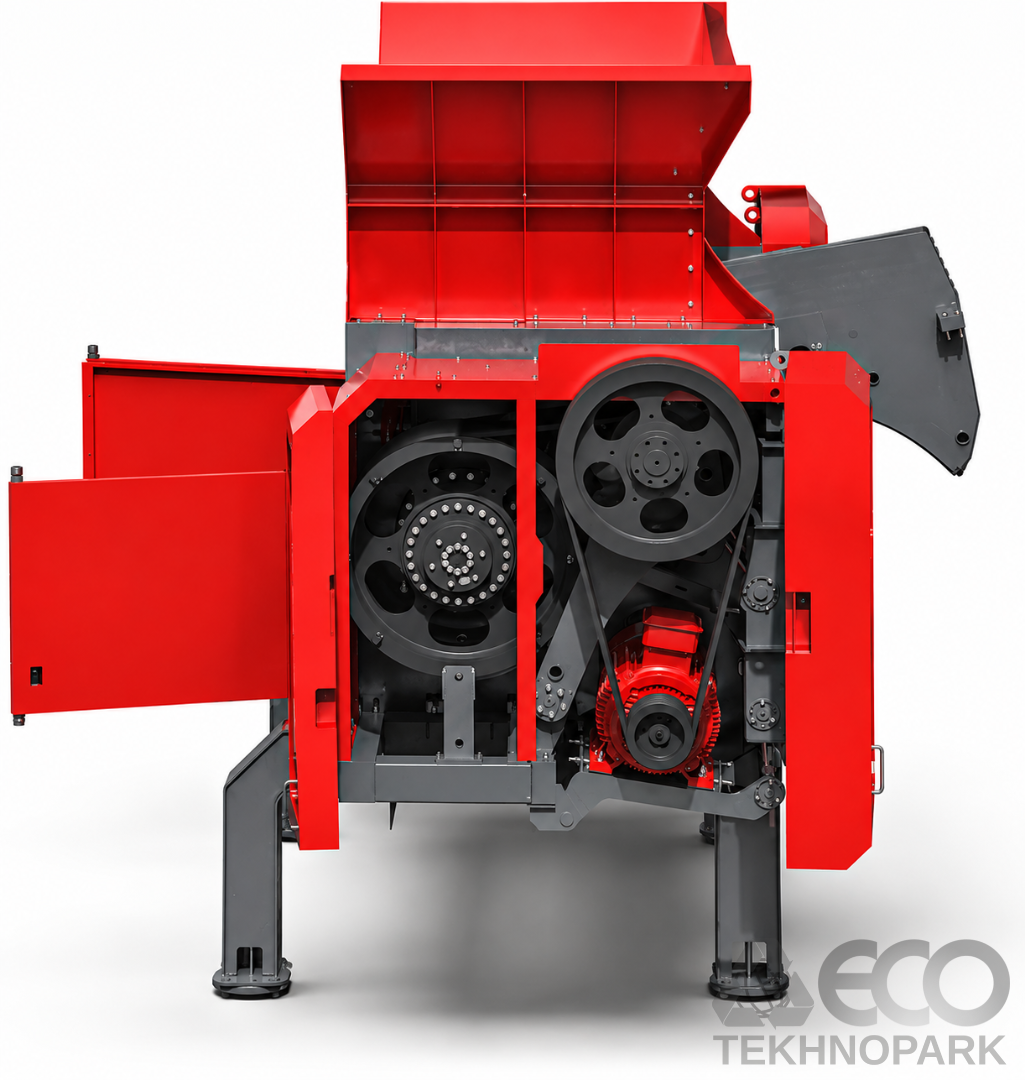

The drive system is engineered to deliver high inertia and substantial torque for powerful and reliable performance. An integrated overload protection system enhances operational safety and helps prevent abnormal equipment damage, ensuring long-term reliability.
| Model | SG3000MP |
|---|---|
| Dimensions (L*W*H)(mm) | 6406*3253*4988 |
| Total Weight (kg) | 35000 |
| Cutting Length (mm) | 3000 |
| Rotor Speed (rpm) | 133 |
| Cutting System Type | P |
| Number of Rotor Knives (pcs) | 75/90 |
| Number of Counter Knives (pcs) | 12 |
| Screens (pcs) | 6 |
| Power (kW) | 2*200 |
| Hydraulic Power (kW) | 15 |
| Drive Control | Frequency Converter |
The SG3000MP is an integrated shredder engineered for processing various types of solid waste under complex operating conditions. It features a robust structural design, high-torque output, and an advanced cutting system, ensuring finer, more uniform, and higher-capacity output.
These enhancements improve shredding efficiency while optimizing operational reliability.
