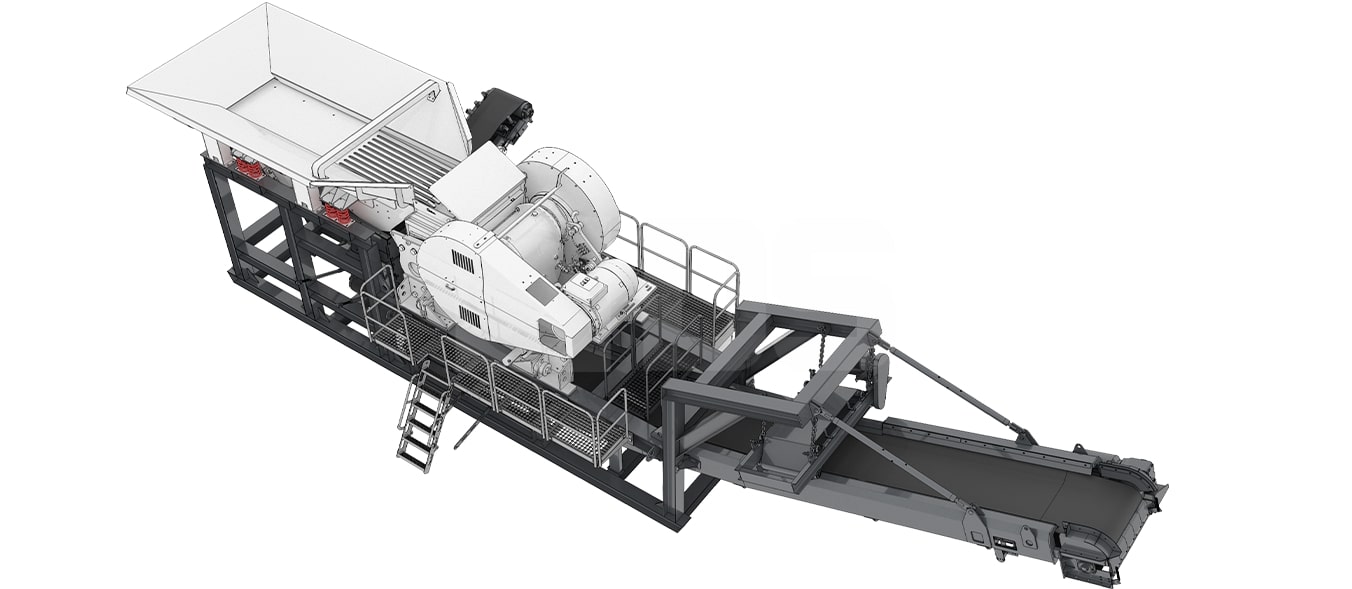

Modular equipment is structurally compact, easy to transport, can be installed and moved as a whole and no need for civil engineering.
Modular equipment is structurally compact, easy to transport, can be installed and moved as a whole and no need for civil engineering.
According to the customer’s needs and the functional requirements, different functions can be flexibly configured, and each module can work independently or in conjunction with each other to form a system.
Compared with traditional stationary production line, modular equipment reduces land occupation, reduces civil construction costs, has less on-site installation workload, short installation period, and can be put into production quickly.
| MJ90 | MJ116 | MJ120 | MJ120B | |
|---|---|---|---|---|
| Capacity, t/h | ≤200 | ≤300 | ≤400 | ≤400 |
| Feed size, mm | ≤460 | ≤600 | ≤700 | ≤700 |
| Unit weight, t | 28 | 39 | 54 | 60 |
| Inlet opening (w*d), mm | 930х580 | 1150х760 | 1200х870 | 1200х870 |
| C.S.S. range, mm | 60-175 | 70-200 | 70-175 | 70-175 |
| Power rating, kw | 90 | 132 | 160 | 160 |
